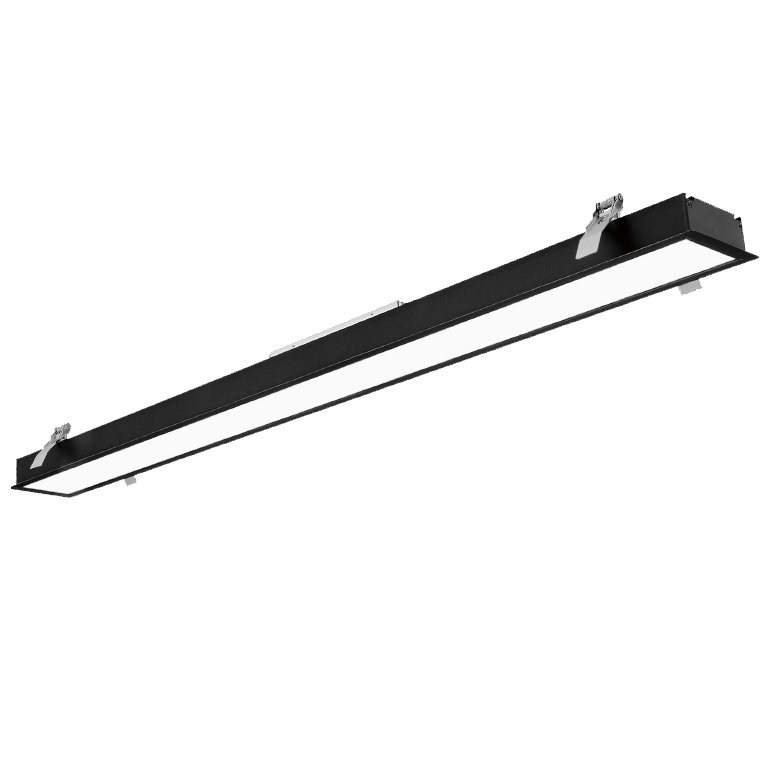

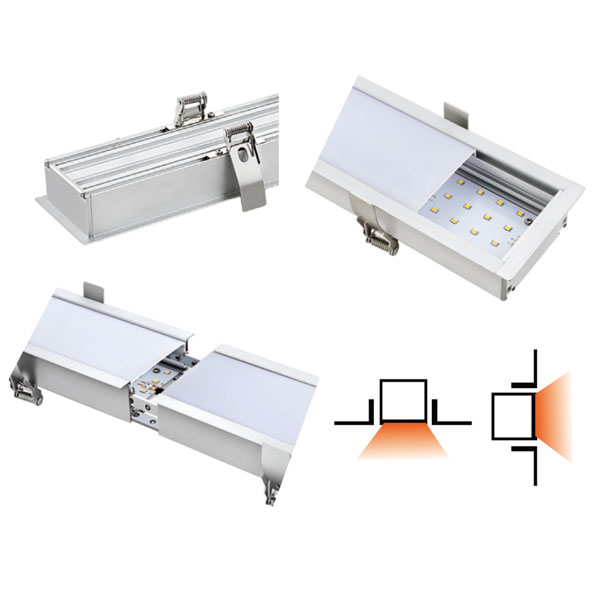

RGB Linear Light LED DMX Colorful Stage Recessed Lighting
Model:
FEL-AL1
Categories Architectural Lighting, Architectural Linear Light, Architectural Pendant Light
Tags BiColor, CCT, Decorative Lighting, DMX, DMX512, dotless, Line Lighting, rgb, RGB+CCT, RGBW
Highlights
→ Bi Color, RGB, RGBW or RGB+CCT Colorful
→ Aluminum Body, Continus Body
→ DXM512 or SPI Protocal

SKU
FEL-AL1
Category: Architectural Lighting, Architectural Linear Light, Architectural Pendant Light
Tags: BiColor, CCT, Decorative Lighting, DMX, DMX512, dotless, Line Lighting, rgb, RGB+CCT, RGBW
Model | Wattage | Color | Dimensions | Hole |
FEL-AL1 5035 | 10-30W | Bi Color, RGB, RGBW or RGB + CCT | W50xH35xL(X)mm | W35x(X-15)mm |
FEL-AL1 5535 | 20-40W | Bi Color, CCT, RGB, RGBW or RGB + CCT | W55xH35xL(X)mm | W40x(X-15)mm |
FEL-AL1 6535 | 20-60W | Bi Color, CCT, RGB, RGBW or RGB + CCT | W65xH35xL(X)mm | W50x(X-15)mm |
FEL-AL1 7035 | 20-60W | Bi Color, CCT, RGB, RGBW or RGB + CCT | W70xH35xL(X)mm | W55x(X-15)mm |
FEL-AL1 7535 | 20-60W | Bi Color, CCT, RGB, RGBW or RGB + CCT | W75xH35xL(X)mm | W60x(X-15)mm |
FEL-AL1 9035 | 20-80W | Bi Color, CCT, RGB, RGBW or RGB + CCT | W90xH35xL(X)mm | W75x(X-15)mm |
X is the length(Outdoor Frame) you need. Any length can be customised/ Any Watts can be Customised |
Input | 220-240VAC/110-277VAC | LED Source | LM80 LEDs |
Wattage | 10-80W | PF | >0.9 |
Color Temperature | Bi Color, CCT, RGB, RGBW or RGB + CCT | Lumen Effective | >100LM/W |
Angel | Aluminum+PC | CRI | >82 or 92 |
Electrical Classification | Class II | IP Rating | IP42 |
Beam Materials | 120° | Body Color | White/Black |
Warranty | 3-5 years | Certifications | SAA CE ROHS |
Send Your Inquiry
Specifications
Model | Wattage | Color | Dimensions | Hole |
FEL-AL1 5035 | 10-30W | Bi Color, RGB, RGBW or RGB + CCT | W50xH35xL(X)mm | W35x(X-15)mm |
FEL-AL1 5535 | 20-40W | Bi Color, CCT, RGB, RGBW or RGB + CCT | W55xH35xL(X)mm | W40x(X-15)mm |
FEL-AL1 6535 | 20-60W | Bi Color, CCT, RGB, RGBW or RGB + CCT | W65xH35xL(X)mm | W50x(X-15)mm |
FEL-AL1 7035 | 20-60W | Bi Color, CCT, RGB, RGBW or RGB + CCT | W70xH35xL(X)mm | W55x(X-15)mm |
FEL-AL1 7535 | 20-60W | Bi Color, CCT, RGB, RGBW or RGB + CCT | W75xH35xL(X)mm | W60x(X-15)mm |
FEL-AL1 9035 | 20-80W | Bi Color, CCT, RGB, RGBW or RGB + CCT | W90xH35xL(X)mm | W75x(X-15)mm |
X is the length(Outdoor Frame) you need. Any length can be customised/ Any Watts can be Customised |
Input | 220-240VAC/110-277VAC | LED Source | LM80 LEDs |
Wattage | 10-80W | PF | >0.9 |
Color Temperature | Bi Color, CCT, RGB, RGBW or RGB + CCT | Lumen Effective | >100LM/W |
Angel | Aluminum+PC | CRI | >82 or 92 |
Electrical Classification | Class II | IP Rating | IP42 |
Beam Materials | 120° | Body Color | White/Black |
Warranty | 3-5 years | Certifications | SAA CE ROHS |
Send Your Inquiry
Can’t find a suitable product?
All of our LED lighting solutions can be customised to your needs. We also offer free, no-obligation consultations, prototype development, sample testing and can assist with your development projects.
Simply call us on with your special requirements and our experts will gladly help you find the best solution for your project.
