DMX 512 Decoder RGB LED Controller with XLR-3R and RJ45

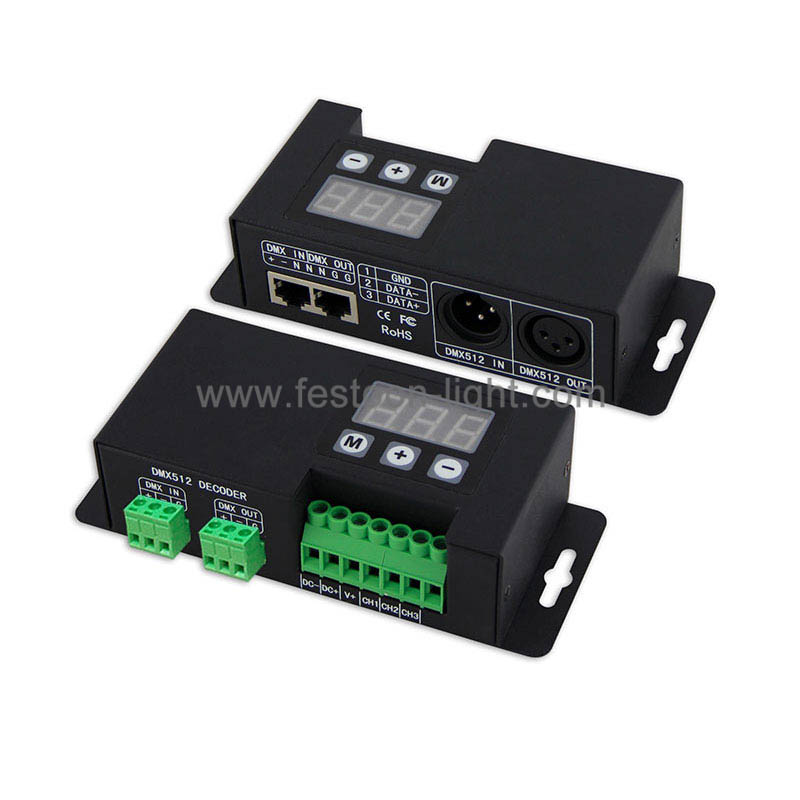

FEL-CD209 DMX 512 Decoder RGB LED Controller with XLR-3R and RJ45 converts DMX512/1990 signals to PWM using advanced microcomputer technology, tailored for constant voltage LED lamps. It auto-adapts to DC12V-24V input, driving 3 channels at 6A each, with power up to 216W (12V) or 432W (24V). Featuring a 3-digit DMX address display, it offers 4096 grey scales per channel with logarithmic dimming for soft, stable light. It supports master/slave modes, with 8 color-changing modes and 10 speed scales in master mode. Includes signal status indicator, power loss memory, and overcurrent/short-circuit/wrong-wiring protection, with multiple DMX interfaces (XLR-3R, RJ45, terminal block).
Highlights
→ 4096 Grey Scales
→ Smooth, soft dimming
→ 3 Channel RGB
→ XLR, RJ45, Terminal block
→ DC12V-24V
| Model | DMX 512 Decoder RGB LED Controller with XLR-3R and RJ45 FEL-CD209 |
| Working Voltage | DC12-24V |
| Max Load Current | 6A×3CH |
| Max Output Power | 72W×3CH(12V)/ 144W×3CH(24V) |
| Output Scale Levels | 4096 levels x 3 |
| Input Signal | DMX512/1990 |
| Output Signal | Constant voltage PWM x 3 |
| Decode Channel | 3CH |
| DMX512 Socket | XLR, RJ45, Terminal block |
| Working Temperature | -20 ~ 55°C |
| Controller Dimension | L157×W65×H40(mm) |
| Weight | 450g |
Send Your Inquiry
High-Quality Dimming: Provides 4096 grey levels per channel, ensuring smooth, flicker-free RGB lighting for superior visual comfort.
Broad Voltage Range: Automatically adapts to DC12V-24V, offering compatibility with various power sources for diverse applications.

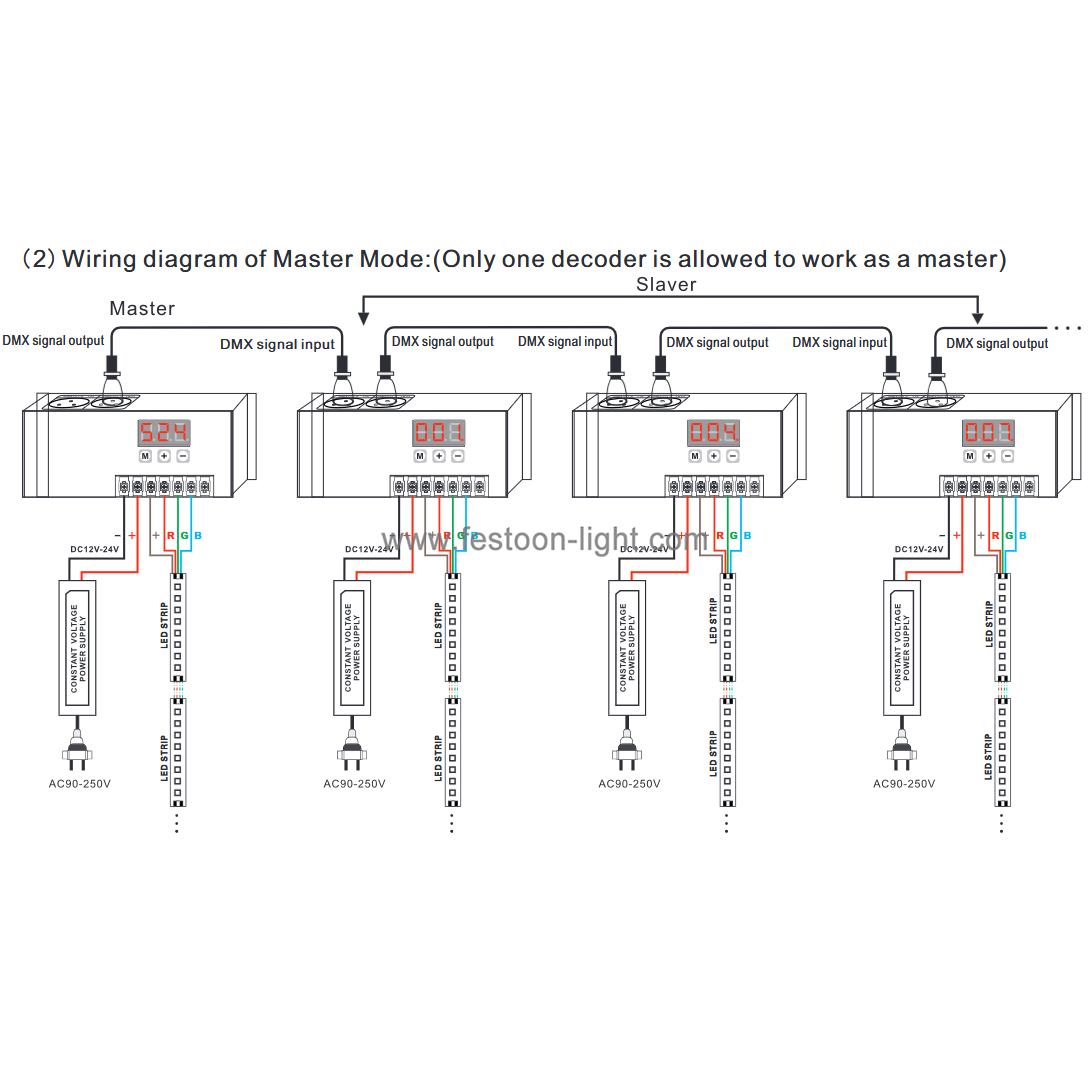

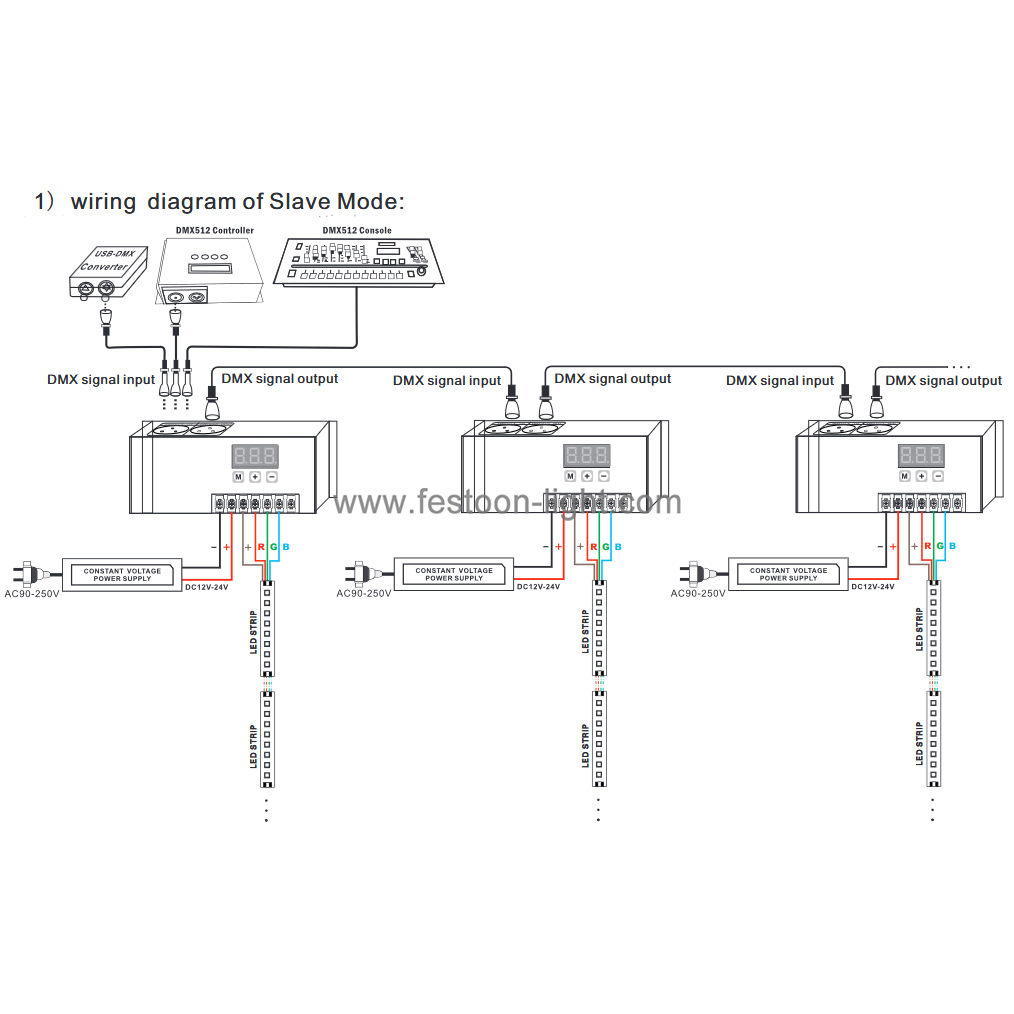

Versatile Control Modes: Supports master mode with 8 color-changing options or slave mode for integration with professional DMX systems.
Powerful Channel Output: Delivers 6A per channel, providing ample power for vibrant RGB effects in small or large setups.
Enhanced Safety Mechanisms: Features overcurrent, short-circuit, and wrong-wiring protection, ensuring long-term reliability and durability.
Flexible Connectivity Options: Includes XLR-3R, RJ45, and terminal block interfaces, accommodating different installation preferences effortlessly.
Settings Preservation: Power loss memory retains configurations, minimizing setup time after outages for uninterrupted use.
Q: What LEDs can the FEL-CD209 control?
A: It controls constant voltage RGB LED lamps requiring PWM, such as strips, tubes, or modules.
Q: Why isn’t the DMX signal registering?
A: Check XLR-3R, RJ45, or terminal block connections, ensure DMX512 input is active, and verify the address display.
Q: Can it support more than 3 channels?
A: No, it’s limited to 3 channels; additional units are required for more capacity.
Q: Why does the light flicker despite no strobe?
A: Ensure stable DC12V-24V input and that the load doesn’t exceed 6A per channel; check power supply stability.
Q: How do I switch to master mode?
A: Disconnect from a DMX console or adjust settings to enable standalone master mode operation.
Residential Interiors: Enhances homes with vibrant RGB lighting, offering smooth transitions for ambiance or mood setting.
Retail Environments: Powers eye-catching RGB displays in stores, highlighting products with stable, colorful illumination.
Architectural Features: Illuminates building exteriors or interiors with dynamic RGB effects, enhancing visual appeal effortlessly.
Event Lighting: Provides versatile RGB control for parties or performances, creating engaging atmospheres with ease.
Creative Installations: Supports artistic LED projects with precise dimming and color options for unique designs.
| Model | DMX 512 Decoder RGB LED Controller with XLR-3R and RJ45 FEL-CD209 |
| Working Voltage | DC12-24V |
| Max Load Current | 6A×3CH |
| Max Output Power | 72W×3CH(12V)/ 144W×3CH(24V) |
| Output Scale Levels | 4096 levels x 3 |
| Input Signal | DMX512/1990 |
| Output Signal | Constant voltage PWM x 3 |
| Decode Channel | 3CH |
| DMX512 Socket | XLR, RJ45, Terminal block |
| Working Temperature | -20 ~ 55°C |
| Controller Dimension | L157×W65×H40(mm) |
| Weight | 450g |
Send Your Inquiry
High-Quality Dimming: Provides 4096 grey levels per channel, ensuring smooth, flicker-free RGB lighting for superior visual comfort.
Broad Voltage Range: Automatically adapts to DC12V-24V, offering compatibility with various power sources for diverse applications.
Versatile Control Modes: Supports master mode with 8 color-changing options or slave mode for integration with professional DMX systems.
Powerful Channel Output: Delivers 6A per channel, providing ample power for vibrant RGB effects in small or large setups.
Enhanced Safety Mechanisms: Features overcurrent, short-circuit, and wrong-wiring protection, ensuring long-term reliability and durability.
Flexible Connectivity Options: Includes XLR-3R, RJ45, and terminal block interfaces, accommodating different installation preferences effortlessly.
Settings Preservation: Power loss memory retains configurations, minimizing setup time after outages for uninterrupted use.
Q: What LEDs can the FEL-CD209 control?
A: It controls constant voltage RGB LED lamps requiring PWM, such as strips, tubes, or modules.
Q: Why isn’t the DMX signal registering?
A: Check XLR-3R, RJ45, or terminal block connections, ensure DMX512 input is active, and verify the address display.
Q: Can it support more than 3 channels?
A: No, it’s limited to 3 channels; additional units are required for more capacity.
Q: Why does the light flicker despite no strobe?
A: Ensure stable DC12V-24V input and that the load doesn’t exceed 6A per channel; check power supply stability.
Q: How do I switch to master mode?
A: Disconnect from a DMX console or adjust settings to enable standalone master mode operation.
Residential Interiors: Enhances homes with vibrant RGB lighting, offering smooth transitions for ambiance or mood setting.
Retail Environments: Powers eye-catching RGB displays in stores, highlighting products with stable, colorful illumination.
Architectural Features: Illuminates building exteriors or interiors with dynamic RGB effects, enhancing visual appeal effortlessly.
Event Lighting: Provides versatile RGB control for parties or performances, creating engaging atmospheres with ease.
Creative Installations: Supports artistic LED projects with precise dimming and color options for unique designs.
