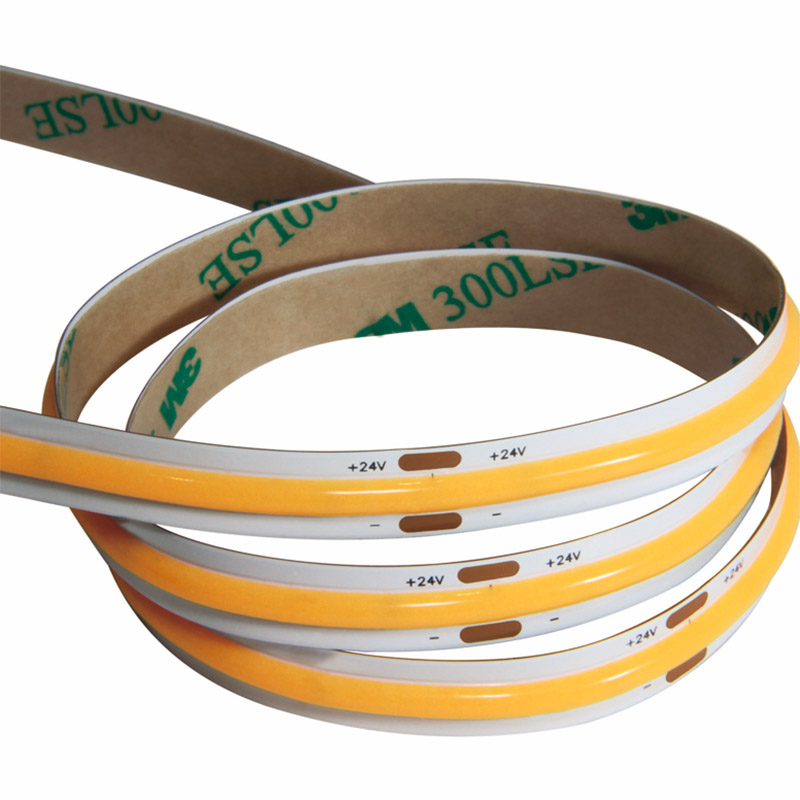

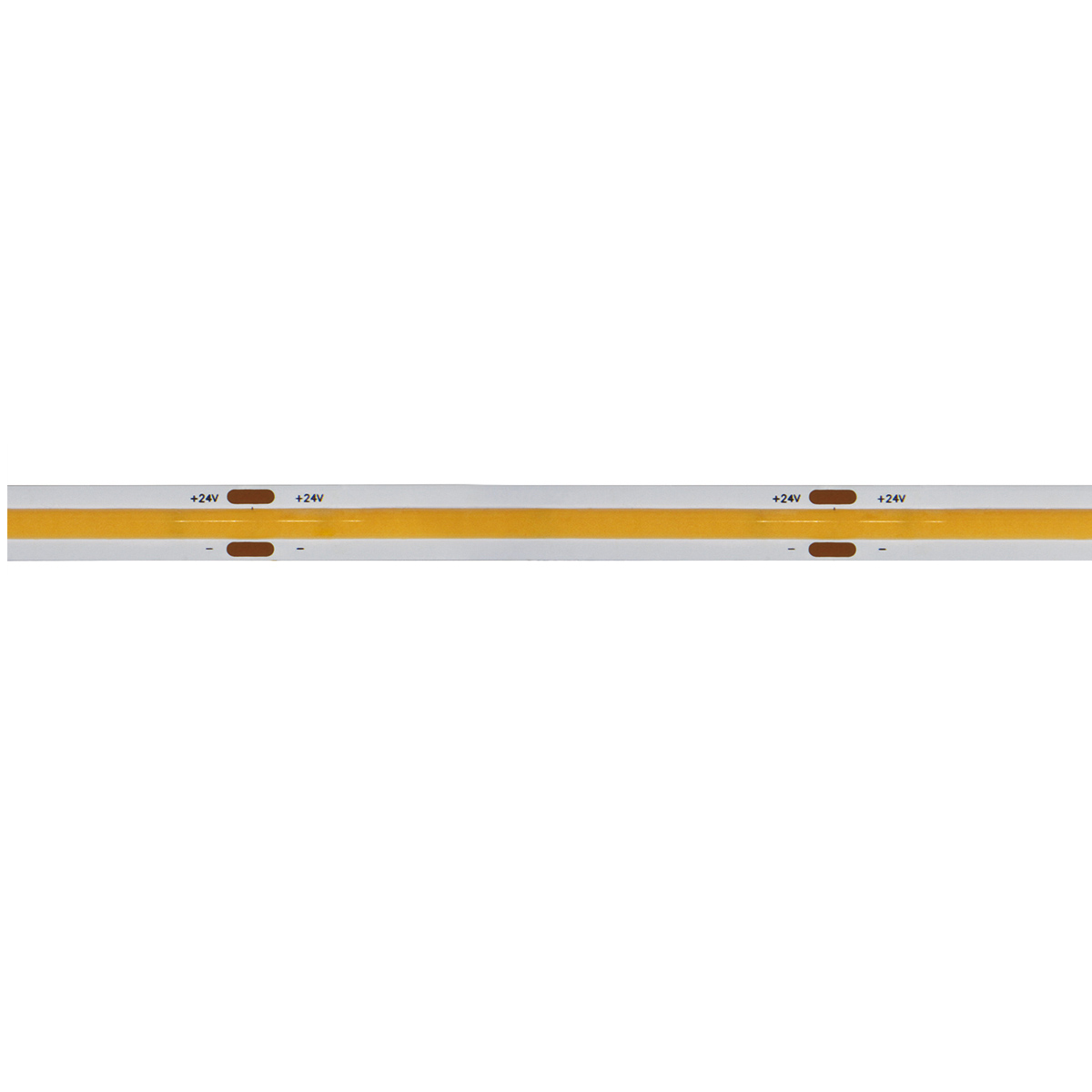

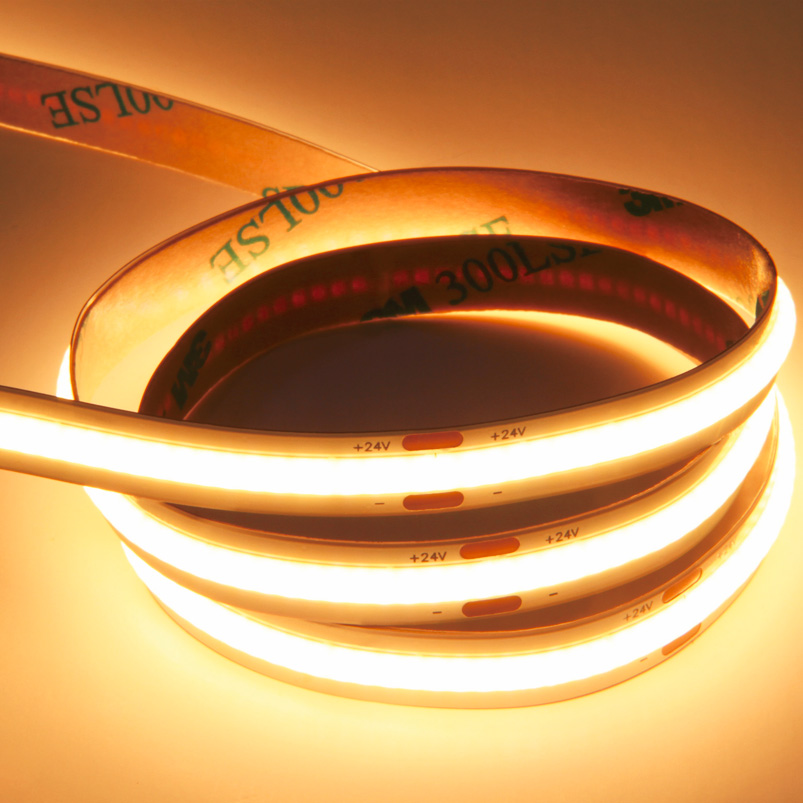

COB LED Strip Light Dotless 8mm 480

Highlights

→ High Lumen 100LM/W

→ Flexible,Bendable,Cuttable

→ High CRI>90

→ 12VDC/24VDC Safety

→ Dotless and Soft Lighting

→ High Density

Item NO. FEL-COB1 8mm
Light Colour 2700K-6000K
Dimmable Yes Light Source 480 COB LEDs
Input Voltage 12VDC/24V DC CRI >90
Brightness 9W /m Beam Angle 180°
Power Consumption 1000LM /m Working Temperature -20 – 50°C
IP Rating IP42 IP65 IP67 or IP68 Type Static
Average Lifetime 50,000 hours Cut Length 25mm/50mm
Width W=8mm
Length Standard 5 meters as a roll. Any length can be Customized
Cable 15cm cable for input.(Any connector cables can be customized
Stick Standard is 3M Yellow Stick(3M Red Stick can be option)



Send Your Inquiry

Q1. What is COB LED Strip Lights?

A1: COB LED Strip Lights, or Chip-on-Board LED Strip Lights, are a type of lighting technology where multiple LED chips are mounted closely together on a single circuit board. Unlike traditional LED strip lights with individual diodes, COB LED strips feature a densely packed array of LED chips, resulting in a seamless and dotless lighting effect. COB technology enables higher lumen output, increased color consistency, and improved thermal management. These strip lights are flexible, bendable, and cuttable, making them versatile for various lighting applications. They are often favored for their compact size, high density, and ability to deliver uniform and visually pleasing illumination.

Q2: What are the features of COB LED Strip Lights?

A2: 1. Dotless Lighting: The densely packed LED chips provide a smooth and continuous lighting effect without visible dots or hotspots.
2. High Lumen Output: COB technology allows for higher lumen output, resulting in bright and vibrant illumination.
3. Flexibility and Bendability: These strip lights can be easily bent and shaped to fit different installations and design requirements.
4. Cuttable Design: COB LED strips can be cut at designated intervals, providing customization options for various lengths and layouts.
5. High Color Rendering Index (CRI): They offer a CRI of over 90, ensuring accurate color representation and vibrant visuals.
6. Safety Voltage: COB LED Strip Lights operate at low-voltage options, such as 12VDC or 24VDC, ensuring safety during installation and usage.
7. High Density: The densely packed LED chips result in a high LED count per unit length, providing uniform and consistent illumination.

Q3: How to choose high quality COB LED Strip Lights?

A3:1. LED Chip Quality: Opt for reputable brands that use high-quality COB LED chips for better performance and longevity.
2. Color Rendering Index (CRI): Look for COB strips with a CRI of 90 or above to ensure accurate color representation.
3. Lumen Output: Consider the desired brightness level and choose COB strips with high lumen output for sufficient illumination.
4. Warranty and Certifications: Check for a reliable warranty and certifications like UL or CE, indicating adherence to safety and quality standards.
5. Heat Dissipation: Ensure the COB strip has proper heat dissipation mechanisms to prevent overheating and maintain LED longevity.
6. Flexibility and Cuttability: Choose COB strips that offer flexibility and easy cuttability to fit different installation requirements.
7. Reviews and Recommendations: Read customer reviews and seek recommendations from trusted sources to gauge the performance and reliability of the COB LED Strip Lights.

1. Architectural Lighting: Dotless COB LED Strip Lights can be used to highlight architectural features, accentuate building facades, or create smooth and continuous lines of light.

2. Cove Lighting: These lights are ideal for cove lighting installations, where they can be seamlessly placed along the edges of ceilings or walls to provide indirect, soft, and dotless illumination.

3. Display Cases: Dotless COB LED Strip Lights are often used in display cases to create even illumination without visible hotspots or individual LED dots, ensuring a clean and professional look.

4. Retail Lighting: In retail environments, dotless COB LED Strip Lights can be used to enhance product displays, showcase merchandise, and create an inviting and visually appealing shopping experience.

5. Hospitality Lighting: These lights are commonly used in hotels, restaurants, and bars to create ambient lighting, highlight architectural details, or provide accent illumination without visible dots or hotspots.

6. Residential Lighting: Dotless COB LED Strip Lights can be utilized in homes for under-cabinet lighting, toe-kick lighting, or accent lighting, providing a seamless and aesthetically pleasing illumination.

7. Art Galleries and Museums: These lights are often employed in art galleries and museums to illuminate art pieces or exhibits with uniform lighting, ensuring accurate color rendition without any visible LED dots.

8. Entertainment and Event Lighting: Dotless COB LED Strip Lights can be used in stage lighting, event backdrops, or set designs to provide smooth, even illumination without visible dots, enhancing the overall visual impact.

COB LED Strip Light Dotless 8mm 480

COB LED Strip Light Dotless 8mm 480

COB LED Strip Light Dotless 8mm 480

COB LED Strip Light Dotless 8mm 480



Specifications
Item NO. FEL-COB1 8mm
Light Colour 2700K-6000K
Dimmable Yes Light Source 480 COB LEDs
Input Voltage 12VDC/24V DC CRI >90
Brightness 9W /m Beam Angle 180°
Power Consumption 1000LM /m Working Temperature -20 – 50°C
IP Rating IP42 IP65 IP67 or IP68 Type Static
Average Lifetime 50,000 hours Cut Length 25mm/50mm
Width W=8mm
Length Standard 5 meters as a roll. Any length can be Customized
Cable 15cm cable for input.(Any connector cables can be customized
Stick Standard is 3M Yellow Stick(3M Red Stick can be option)



Send Your Inquiry

Description
Why choose us?
Frequently Asked Questions

Q1. What is COB LED Strip Lights?

A1: COB LED Strip Lights, or Chip-on-Board LED Strip Lights, are a type of lighting technology where multiple LED chips are mounted closely together on a single circuit board. Unlike traditional LED strip lights with individual diodes, COB LED strips feature a densely packed array of LED chips, resulting in a seamless and dotless lighting effect. COB technology enables higher lumen output, increased color consistency, and improved thermal management. These strip lights are flexible, bendable, and cuttable, making them versatile for various lighting applications. They are often favored for their compact size, high density, and ability to deliver uniform and visually pleasing illumination.

Q2: What are the features of COB LED Strip Lights?

A2: 1. Dotless Lighting: The densely packed LED chips provide a smooth and continuous lighting effect without visible dots or hotspots.
2. High Lumen Output: COB technology allows for higher lumen output, resulting in bright and vibrant illumination.
3. Flexibility and Bendability: These strip lights can be easily bent and shaped to fit different installations and design requirements.
4. Cuttable Design: COB LED strips can be cut at designated intervals, providing customization options for various lengths and layouts.
5. High Color Rendering Index (CRI): They offer a CRI of over 90, ensuring accurate color representation and vibrant visuals.
6. Safety Voltage: COB LED Strip Lights operate at low-voltage options, such as 12VDC or 24VDC, ensuring safety during installation and usage.
7. High Density: The densely packed LED chips result in a high LED count per unit length, providing uniform and consistent illumination.

Q3: How to choose high quality COB LED Strip Lights?

A3:1. LED Chip Quality: Opt for reputable brands that use high-quality COB LED chips for better performance and longevity.
2. Color Rendering Index (CRI): Look for COB strips with a CRI of 90 or above to ensure accurate color representation.
3. Lumen Output: Consider the desired brightness level and choose COB strips with high lumen output for sufficient illumination.
4. Warranty and Certifications: Check for a reliable warranty and certifications like UL or CE, indicating adherence to safety and quality standards.
5. Heat Dissipation: Ensure the COB strip has proper heat dissipation mechanisms to prevent overheating and maintain LED longevity.
6. Flexibility and Cuttability: Choose COB strips that offer flexibility and easy cuttability to fit different installation requirements.
7. Reviews and Recommendations: Read customer reviews and seek recommendations from trusted sources to gauge the performance and reliability of the COB LED Strip Lights.

Applications

1. Architectural Lighting: Dotless COB LED Strip Lights can be used to highlight architectural features, accentuate building facades, or create smooth and continuous lines of light.

2. Cove Lighting: These lights are ideal for cove lighting installations, where they can be seamlessly placed along the edges of ceilings or walls to provide indirect, soft, and dotless illumination.

3. Display Cases: Dotless COB LED Strip Lights are often used in display cases to create even illumination without visible hotspots or individual LED dots, ensuring a clean and professional look.

4. Retail Lighting: In retail environments, dotless COB LED Strip Lights can be used to enhance product displays, showcase merchandise, and create an inviting and visually appealing shopping experience.

5. Hospitality Lighting: These lights are commonly used in hotels, restaurants, and bars to create ambient lighting, highlight architectural details, or provide accent illumination without visible dots or hotspots.

6. Residential Lighting: Dotless COB LED Strip Lights can be utilized in homes for under-cabinet lighting, toe-kick lighting, or accent lighting, providing a seamless and aesthetically pleasing illumination.

7. Art Galleries and Museums: These lights are often employed in art galleries and museums to illuminate art pieces or exhibits with uniform lighting, ensuring accurate color rendition without any visible LED dots.

8. Entertainment and Event Lighting: Dotless COB LED Strip Lights can be used in stage lighting, event backdrops, or set designs to provide smooth, even illumination without visible dots, enhancing the overall visual impact.

COB LED Strip Light Dotless 8mm 480

COB LED Strip Light Dotless 8mm 480

COB LED Strip Light Dotless 8mm 480

COB LED Strip Light Dotless 8mm 480
