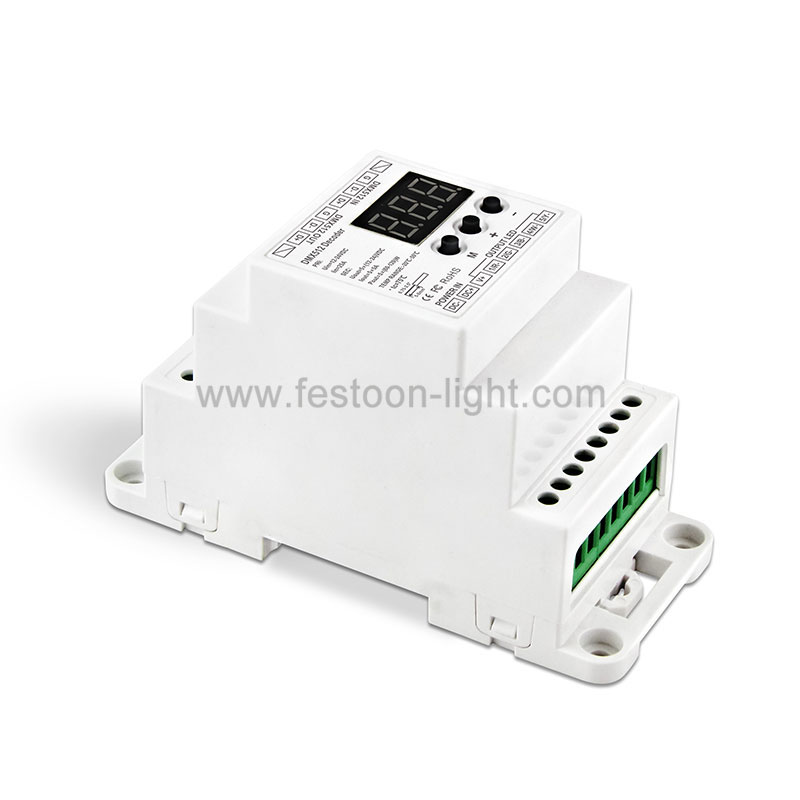

5 Channel DMX Decoder 512 RGBWW DIN Rail

FEL-CD264 5 Channel DMX Decoder 512 RGBWW DIN Rail is a versatile and powerful device crafted exclusively for constant voltage LED lamps, utilizing advanced microcomputer control technology to transform standard DMX512/1990 signals into PWM (pulse-width-modulation) outputs for precise RGBWW (Red, Green, Blue, Warm White, Cool White) lighting control. It features five output channels, each capable of delivering a maximum load current of 5A, resulting in a total power output of 300W at 12V or 600W at 24V. This robust capacity makes it an excellent choice for complex lighting setups requiring rich color and white temperature options. Its ability to automatically adapt to an input voltage range of DC12V-24V ensures compatibility with a wide range of power supplies, catering to both small-scale decorative applications and large-scale architectural or commercial projects. With 4096 grey scale levels per channel and logarithmic dimming, it delivers soft, stable illumination free of strobe flash, making it ideal for environments where high-quality, flicker-free light is essential. Operation is streamlined through a 3-digit display that shows the DMX address code, simplifying setup and configuration, while an indicator provides real-time feedback on DMX512 signal reception status. The FEL-CD264 supports dual-mode functionality: in master mode, it offers 8 built-in color-changing modes and 10 adjustable speed scales, enabling dynamic standalone effects without external control—perfect for creating engaging lighting sequences. In slave mode, it integrates seamlessly with digital consoles or analog silicon cases, driving RGBWW LED lamps for architectural or general lighting purposes. Safety is a top priority, with wrong-wiring protection at the DMX port, overcurrent and short-circuit protection, and a power loss memory function that retains settings during outages, minimizing reconfiguration time—a critical feature for large installations. The DIN rail design enhances its practicality, allowing quick and secure mounting in extensive projects like commercial buildings or industrial spaces, where organized installation is key. The terminal block DMX512 socket ensures reliable and straightforward connectivity. The FEL-CD264 excels in delivering smooth, vibrant RGBWW lighting effects, with the flexibility to operate with 1 to 5 channels based on user needs. Its high-resolution dimming, protective design, and DIN rail compatibility make it an ideal solution for lighting professionals and enthusiasts seeking reliable, scalable performance. Whether illuminating indoor spaces, enhancing commercial displays, or powering large-scale architectural lighting, this decoder bridges traditional DMX systems with modern LED technology, offering a compact, rail-mountable solution that balances power, flexibility, and ease of use for sophisticated lighting control.
