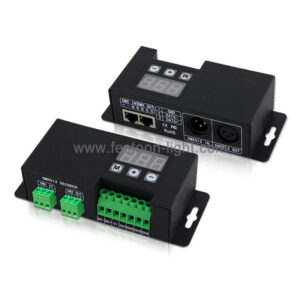

DMX 512 Decoder RGBW 4 Channel with XLR-3R and RJ45
FEL-CD210 DMX 512 Decoder RGBW 4 Channel with XLR-3R and RJ45 converts DMX512/1990 signals to PWM using advanced microcomputer technology, designed for constant voltage LED lamps. It auto-adapts to DC12V-24V input, offering 4 channels (RGB: 4A×3, W: 12A×1 or 6A×4) with power up to 288W (12V) or 576W (24V). Featuring a 3-digit DMX address display, it provides 4096 grey scales per channel with logarithmic dimming for soft, stable light. It supports master/slave modes, with 8 color-changing modes and 10 speed scales in master mode. Includes signal status indicator, power loss memory, overcurrent/short-circuit/wrong-wiring protection, and multiple DMX interfaces (XLR-3R, RJ45, terminal block).
Highlights
→ 4096 Grey Scales
→ XLR, RJ45 and Terminal block.
→ 4 Channel RGBW

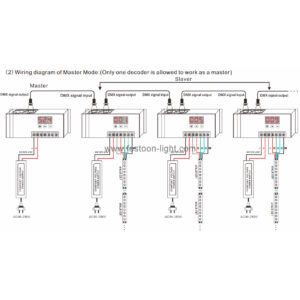

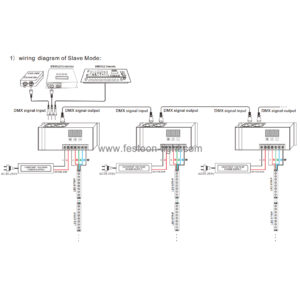

→ Master or Slave DMX
→ DC12V-24V
| Model | DMX 512 Decoder RGBW 4 Channel with XLR-3R and RJ45 FEL-CD210 |
| Working Voltage | DC12-24V |
| Max Load Current | RGB:4A×3CH W:12A×1CH or 6A×4CH |
| Max Output Power | RGB:48W×3CH W:144W(12V)/RGB:96W×3CH W:288W(24V) or 288W(12V)/576(24V) |
| Output Scale Levels | 4096 levels x 4 |
| Input Signal | DMX512/1990 |
| Output Signal | Constant voltage PWM x 4 |
| Decode Channel | 4CH |
| DMX512 Socket | XLR-3R port/ RJ45 port/Terminal block |
| Working Temperature | -20 ~ 55°C |
| Controller Dimension | L157×W65×H40(mm) |
| Weight | 450g |
Send Your Inquiry
High-Resolution Dimming: Offers 4096 grey levels per channel, ensuring smooth, flicker-free RGBW lighting for professional-quality results.
Flexible Power Options: Adapts to DC12V-24V input, providing compatibility with various power sources for diverse lighting setups.
Dynamic Mode Selection: Supports master mode with 8 color-changing modes or slave mode for integration with advanced DMX systems.
Robust Output Capacity: Delivers 4A for RGB and 12A for white, or 6A across 4 channels, powering vibrant lighting displays.
Enhanced Safety Design: Features overcurrent, short-circuit, and wrong-wiring protection, ensuring reliable operation and device longevity.
Multiple Connectivity Choices: Includes XLR-3R, RJ45, and terminal block interfaces, offering versatile options for installation flexibility.
Settings Preservation Feature: Power loss memory retains configurations, reducing setup time after outages for seamless usability.
Q: What LEDs can the FEL-CD210 control?
A: It controls constant voltage RGBW LED lamps requiring PWM, such as strips, modules, or fixtures.
Q: Why isn’t the DMX signal being detected?
A: Check XLR-3R, RJ45, or terminal block connections, ensure DMX512 input is active, and verify the address display.
Q: Can it support more than 4 channels?
A: No, it’s limited to 4 channels; additional units are required for more capacity.
Q: Why does the light flicker despite no strobe?
A: Ensure stable DC12V-24V input and that loads (4A RGB, 12A W or 6A×4) aren’t exceeded; check power stability.
Q: How do I activate master mode?
A: Disconnect from a DMX console or adjust settings to enable standalone master mode operation.
Home Ambiance Lighting: Enhances interiors with smooth RGBW effects, perfect for creating customizable moods or accents in living spaces.
Retail Store Displays: Powers vibrant RGBW lighting to highlight products, attracting customers with stable, eye-catching illumination.
Architectural Enhancement: Illuminates building facades or interiors with dynamic RGBW effects, adding aesthetic value effortlessly.
Entertainment Venues: Provides versatile RGBW control for stages or events, delivering engaging, flicker-free lighting experiences.
Outdoor Decor Projects: Supports reliable RGBW lighting for gardens or signage, ensuring consistent performance in exterior conditions.
| Model | DMX 512 Decoder RGBW 4 Channel with XLR-3R and RJ45 FEL-CD210 |
| Working Voltage | DC12-24V |
| Max Load Current | RGB:4A×3CH W:12A×1CH or 6A×4CH |
| Max Output Power | RGB:48W×3CH W:144W(12V)/RGB:96W×3CH W:288W(24V) or 288W(12V)/576(24V) |
| Output Scale Levels | 4096 levels x 4 |
| Input Signal | DMX512/1990 |
| Output Signal | Constant voltage PWM x 4 |
| Decode Channel | 4CH |
| DMX512 Socket | XLR-3R port/ RJ45 port/Terminal block |
| Working Temperature | -20 ~ 55°C |
| Controller Dimension | L157×W65×H40(mm) |
| Weight | 450g |
Send Your Inquiry
High-Resolution Dimming: Offers 4096 grey levels per channel, ensuring smooth, flicker-free RGBW lighting for professional-quality results.
Flexible Power Options: Adapts to DC12V-24V input, providing compatibility with various power sources for diverse lighting setups.
Dynamic Mode Selection: Supports master mode with 8 color-changing modes or slave mode for integration with advanced DMX systems.
Robust Output Capacity: Delivers 4A for RGB and 12A for white, or 6A across 4 channels, powering vibrant lighting displays.
Enhanced Safety Design: Features overcurrent, short-circuit, and wrong-wiring protection, ensuring reliable operation and device longevity.
Multiple Connectivity Choices: Includes XLR-3R, RJ45, and terminal block interfaces, offering versatile options for installation flexibility.
Settings Preservation Feature: Power loss memory retains configurations, reducing setup time after outages for seamless usability.
Q: What LEDs can the FEL-CD210 control?
A: It controls constant voltage RGBW LED lamps requiring PWM, such as strips, modules, or fixtures.
Q: Why isn’t the DMX signal being detected?
A: Check XLR-3R, RJ45, or terminal block connections, ensure DMX512 input is active, and verify the address display.
Q: Can it support more than 4 channels?
A: No, it’s limited to 4 channels; additional units are required for more capacity.
Q: Why does the light flicker despite no strobe?
A: Ensure stable DC12V-24V input and that loads (4A RGB, 12A W or 6A×4) aren’t exceeded; check power stability.
Q: How do I activate master mode?
A: Disconnect from a DMX console or adjust settings to enable standalone master mode operation.
Home Ambiance Lighting: Enhances interiors with smooth RGBW effects, perfect for creating customizable moods or accents in living spaces.
Retail Store Displays: Powers vibrant RGBW lighting to highlight products, attracting customers with stable, eye-catching illumination.
Architectural Enhancement: Illuminates building facades or interiors with dynamic RGBW effects, adding aesthetic value effortlessly.
Entertainment Venues: Provides versatile RGBW control for stages or events, delivering engaging, flicker-free lighting experiences.
Outdoor Decor Projects: Supports reliable RGBW lighting for gardens or signage, ensuring consistent performance in exterior conditions.
