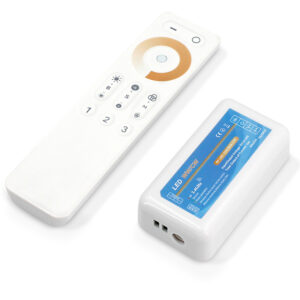

CCT Dual Color Controller Dimmer with 2.4G Remoter 3 Zone FEL-DM2 B

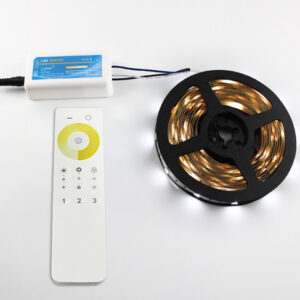

FEL-DM2 B is a dual color wireless 12V dimmer switch controller with a 2.4G remoter. The input is DC 12-24V and has 3 Channels for loading CCT dual color LED lights.It can support 3 Zones. Very good for making dimmable to CCT dual color SMD led strip lights and CCT dual color COB led strip light. Professional packaging is good for wholesales and retail.
Highlights
→ RF 2.4G
→ 12VDC 24VDC

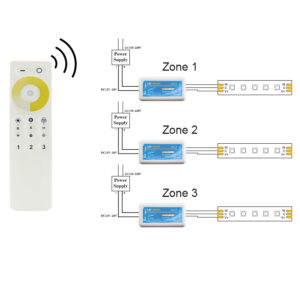

→ 3 Zones
→ Dimmable and CCT Dual Color
→ Stable and Flicker Free
→ Easy Connection
| Model NO.: | FEL-DM2 B | Zones | 3 Zone |
| Function | Dimmable and CCT | Input Voltage | 12-24V DC |
| Input Terminal | DC2.1 and Screw terminal | Output | 6A*2CH |
| Max Power Load | 12V=144W, 24V=288W | Dimming | 0-100% |
| Remoter Frequency | RF 2.4GHz or Push Dim | Operate Temp. | -30°C – +55°C |
| Receiver Dimension | L85*W45*H23mm | Receiver Weight | 45g |
| Remoter Dimension | L150*W40*H13mm | Remoter Weight | 60g |
| Packaging | Colorful Box or Skin Packing, any OEM can be supported. | ||
Send Your Inquiry
CCT dual color LED controllers are used in applications where adjustable color temperature lighting is desired. They are commonly used in residential and commercial settings, such as homes, offices, hotels, and restaurants, where the ability to switch between warm and cool lighting is important. These controllers allow users to create different moods and lighting scenarios, making them suitable for ambiance lighting, task lighting, architectural lighting, and retail displays where color temperature control is desired to enhance the overall aesthetics and functionality of the space.
| Model NO.: | FEL-DM2 B | Zones | 3 Zone |
| Function | Dimmable and CCT | Input Voltage | 12-24V DC |
| Input Terminal | DC2.1 and Screw terminal | Output | 6A*2CH |
| Max Power Load | 12V=144W, 24V=288W | Dimming | 0-100% |
| Remoter Frequency | RF 2.4GHz or Push Dim | Operate Temp. | -30°C – +55°C |
| Receiver Dimension | L85*W45*H23mm | Receiver Weight | 45g |
| Remoter Dimension | L150*W40*H13mm | Remoter Weight | 60g |
| Packaging | Colorful Box or Skin Packing, any OEM can be supported. | ||
Send Your Inquiry
CCT dual color LED controllers are used in applications where adjustable color temperature lighting is desired. They are commonly used in residential and commercial settings, such as homes, offices, hotels, and restaurants, where the ability to switch between warm and cool lighting is important. These controllers allow users to create different moods and lighting scenarios, making them suitable for ambiance lighting, task lighting, architectural lighting, and retail displays where color temperature control is desired to enhance the overall aesthetics and functionality of the space.
