| Model | Pixel Light Controller RGB RGBW DIY FEL-CP1 |
| Working Voltage | DC5V-DC24V |
| Output Current | Max 10A |
| Output Power Range | 50W(5V)/120W(12V)/240W(24V) |
| Remote Distance | 30-50m |
| Controller Dimension | L135 X W30 X H20(mm) |
| Weight | 110g |
Pixel Light Controller RGB RGBW LED DIY with Remoter
FEL-CP1 is a compact yet powerful LED dream color controller, featuring touch keys and a digital tube display for easy operation, with RF remote control up to 30-50 meters. It supports all IC-driven LED lights, including RGB/RGBW pixel strips, with 6 IC options and adjustable pixel control. Offering various dynamic lighting effects, users can customize brightness, speed, color change direction, RGB sequence, and DIY effects. With an input voltage of DC5V-24V, max 10A output current, and power range of 50W-240W, it meets diverse needs.
Key Highlights
- Supports RGB/RGBW, 6 ICs.
- Touch keys, digital display.
- RF control, 30-50m range.
- DIY brightness, effects.
- 10A, 50-240W range.
Category: Controller , Pixel Controller
FEL-CP1, fully named “Pixel Light Controller RGB RGBW LED DIY with Remoter,” is a pixel light controller tailored for LED enthusiasts and DIY creators. Despite its compact size, it packs powerful features to deliver a versatile and engaging lighting control experience. It supports a wide input voltage range of DC5V to DC24V, with a maximum output current of 10A and an output power range spanning 50W (5V), 120W (12V), or 240W (24V), making it suitable for driving various LED setups. The standout feature of the FEL-CP1 lies in its compatibility and customization options—it supports six IC series (such as WS2811, SK6812, etc.) and can control RGB or RGBW pixel strips, allowing users to freely set the number of controlled pixels based on their needs.
Operationally, the FEL-CP1 is designed for ease of use, featuring touch keys and a clear digital tube display that simplifies setup and adjustments. It also includes RF remote control functionality with an impressive range of 30-50 meters, enabling effortless control from a distance. The controller comes with a variety of built-in dynamic lighting effects, ranging from smooth gradients to vibrant flashes, catering to different moods and occasions. What sets it apart is the ability to tweak brightness, running speed, color change direction, and even the RGB sequence, empowering users to craft their own DIY color effects. Whether for home decor, festive lighting, or creative projects, the FEL-CP1 meets diverse needs with ease. Its blend of simplicity, robust features, and creative freedom makes it a standout choice among LED controllers, offering both practicality and inspiration for lighting enthusiasts.
Highly Versatile: Supports RGB and RGBW pixel strips, compatible with 6 IC series, and allows customizable pixel counts for needs ranging from small decor to big projects.
User-Friendly: Features touch keys and a digital tube display for intuitive setup, plus RF remote control with a 30-50 meter range for convenient adjustments anytime, anywhere.
Fully Customizable: Adjust brightness, speed, color change direction, and RGB sequences, or DIY unique effects to unleash endless creativity.
Broad Compatibility: Handles DC5V-24V input voltage and up to 10A output current, reliably powering various LED setups for diverse applications.
Cost-Effective: Compact yet powerful, it blends practicality and personalization, making it an ideal choice for both home users and professionals.
FEL-CP1 supports RGB and RGBW pixel strips and is compatible with 6 common IC series (e.g., WS2811, SK6812). Users can select the appropriate IC setting based on their strip type for proper operation.
The remote range is 30-50 meters. The RF signal can penetrate some barriers, but walls or large obstacles may reduce the effective distance. For best results, use it in open spaces.
Check if the input voltage matches the strip (DC5V-24V), ensure the pixel count is set correctly, and verify secure connections. If it still doesn’t work, the IC type might be incorrect—adjust the settings accordingly.

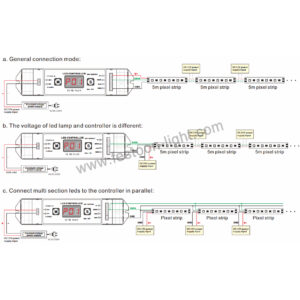

Yes, but the total pixel count and output current (max 10A) must stay within limits. Connect strips in parallel and ensure the power supply has sufficient capacity.
DIY effects on FEL-CP1 are adjusted in real-time and cannot be permanently saved. Users need to reconfigure their custom effects each time they use it.
Home Decoration: Ideal for living rooms, bedrooms, or patios, with dynamic effects and DIY colors for holidays (e.g., Christmas, Halloween) or daily ambiance.
Commercial Spaces: Perfect for cafes, restaurants, or shop windows, using flexible lighting control to attract customers and boost brand appeal.
Stage Performances & Events: Powers RGB/RGBW strips to create dazzling effects synced with music or event themes.
DIY Projects: Meets the needs of enthusiasts and creators for art installations, model lighting, or custom lighting designs.
Indoor & Outdoor Use: Suitable indoors or outdoors (with waterproofing), adapting to various environments.
