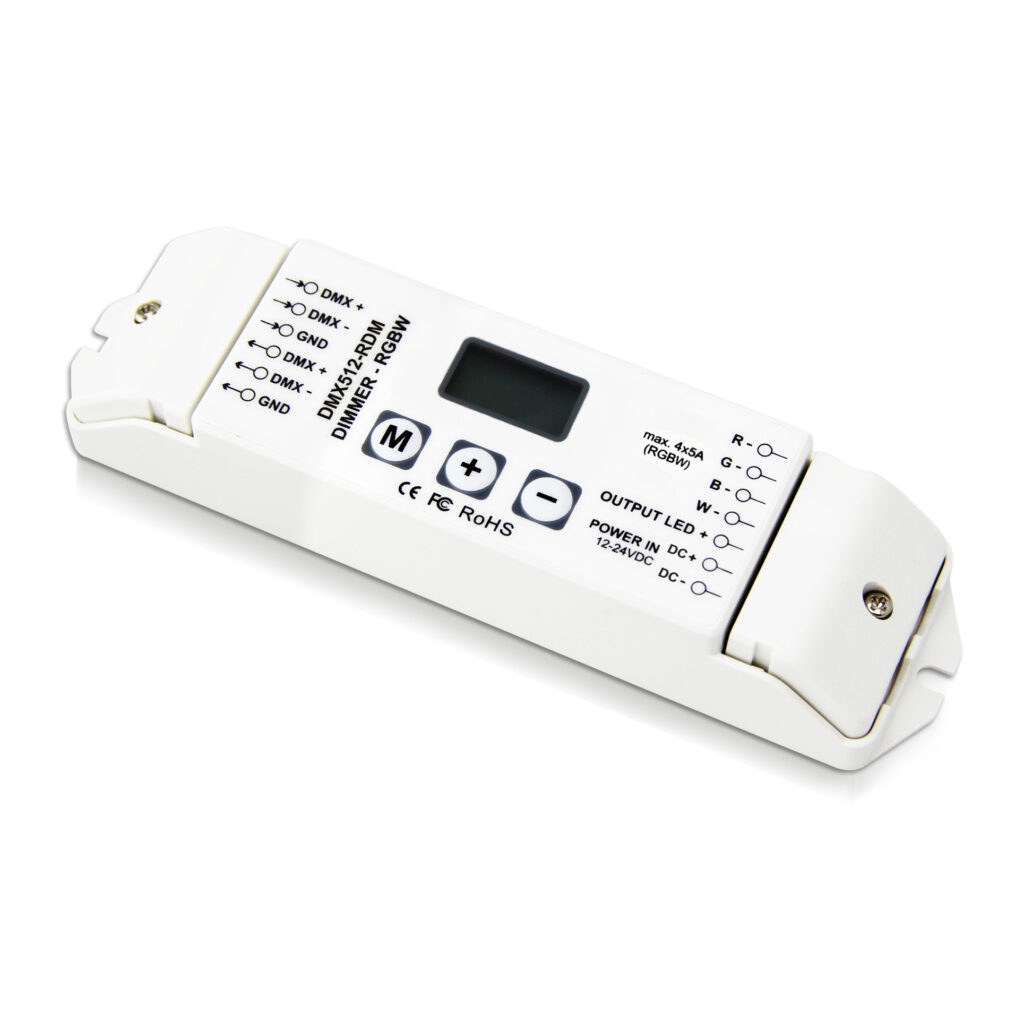

DMX512 & RDM Decoder DMX Constant Voltage 4 Channel

FEL-CD208 DMX512 & RDM Decoder DMX Constant Voltage 4 Channel is a cutting-edge solution crafted exclusively for constant voltage LED lamps, utilizing advanced microcomputer control technology to seamlessly transform RDM-enhanced DMX512/1990 signals into PWM (pulse-width-modulation) outputs for precise and versatile lighting control. Designed with four output channels, each capable of delivering a maximum load current of 5A (up to 20A total), this decoder provides robust power outputs of 240W at 12V or 480W at 24V. Its input voltage range of DC12V-24V ensures compatibility with a variety of power setups, making it an adaptable choice for both small and large-scale lighting projects. The FEL-CD208 excels in controlling single-color, color temperature, RGB, and RGBW LED lamps, offering four switchable modes (DIM, CT, RGB, RGBW) to meet diverse lighting demands.

User interaction is enhanced with an OLED screen and responsive touch buttons, providing an intuitive interface for effortless configuration. It supports selectable 8-bit (256 grey levels) or 16-bit (65536 grey levels) decoding for exceptional resolution and smoothness, paired with adjustable output frequencies (3K, 6K, 12K, 24K) to optimize performance across applications. A standout feature is its integration of the RDM (Remote Device Management) protocol, enabling remote operations such as parameter browsing, DMX address setting, and equipment recognition via an RDM master console—an invaluable tool for professional lighting management. The decoder also offers flexible dimming options, including standard, linear, LOG, or custom 0.1-9.9 curves, allowing users to tailor lighting effects precisely. Safety and reliability are ensured with overcurrent and short-circuit protection, while a power-off data-saving function preserves settings during outages, minimizing reconfiguration time. The terminal block DMX512 socket facilitates secure and straightforward connectivity.

Whether illuminating a theater stage, enhancing a commercial space, or powering a custom installation, the FEL-CD208 combines high-capacity control, advanced features, and dependable design. Its ability to switch between 1 to 4 channels, paired with RDM capabilities and protective mechanisms, makes it an essential asset for lighting designers and technicians seeking precision, scalability, and ease of use in constant voltage LED applications. This decoder delivers a blend of technical excellence and practical functionality, setting a high standard for modern lighting control.

Advanced User Interface: Features an OLED screen with touch buttons, making setup and operation intuitive and efficient for all users.
High-Resolution Control: Offers 256 or 65536 grey levels, providing smooth, precise dimming for professional-grade lighting effects.

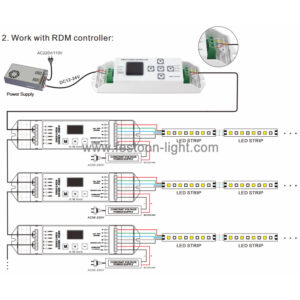

Remote Management Capability: Supports RDM protocol, allowing remote configuration and monitoring via a console, saving time and effort.
Versatile Channel Options: Delivers 4 channels with 5A each, adaptable from 1 to 4 outputs, meeting diverse lighting project needs.
Reliable and Safe Design: Includes overcurrent/short-circuit protection and data saving, ensuring consistent performance and device longevity.
Flexible Dimming Curves: Provides standard, linear, LOG, or custom 0.1-9.9 options, tailoring light output to specific preferences or applications.
Powerful Output Capacity: Handles up to 480W, supporting robust lighting setups with stable, flicker-free operation across modes.

Theater Productions: Provides precise 4-channel RGBW control for dynamic, high-resolution stage lighting effects during performances.
Commercial Interiors: Enhances retail or office spaces with smooth, customizable lighting for ambiance and product highlighting.
Architectural Lighting: Illuminates building exteriors or interiors with stable, flicker-free RGBW effects for aesthetic enhancement.
Event Lighting Design: Powers vibrant, remotely manageable lighting setups for concerts, weddings, or corporate events with ease.
Residential Installations: Offers versatile DIM/CT/RGB/RGBW options for home lighting, creating tailored moods or accents effortlessly.
