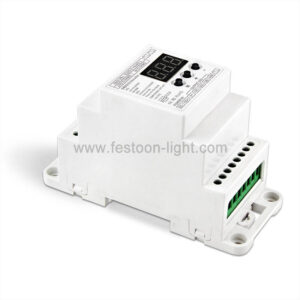

DMX512 Decoder 4 Channel RGBW DIN Rail with RJ45

Model: FEL-CD267 Categories , Tags , , , ,

FEL-CD267 DMX512 Decoder 4 Channel RGBW DIN Rail with RJ45 converts DMX512/1990 signals to PWM using advanced microcomputer technology, designed for constant voltage LED lamps. It auto-adapts to DC12V-24V input, driving 4 channels at 6A each with power up to 288W (12V) or 576W (24V). Featuring a 3-digit DMX address display, it offers 4096 grey scales per channel with logarithmic dimming for soft, stable light. It supports master/slave modes, with 8 color-changing modes and 10 speed scales in master mode. Includes signal status indicator, power loss memory, wrong-wiring/overcurrent/short-circuit protection, RJ45 connectivity, and a DIN rail design for easy large-scale installation.

Highlights

→ 4096 Grey Scales
→ Smooth, soft dimming
→ DIN Rail Large-Scale Install
→ Master or Slave DMX
→ DC12V-24V,RJ45 Socket
→ 4 Channel RGBW

SKU FEL-CD267 Category: , Tags: , , , ,
Model DMX512 Decoder 4 Channel RGBW DIN Rail with RJ45 FEL-CD267
Working Voltage DC12-24V
Max Load Current 6A x 4CH
Max Output Power 288W(12V)/576W(24V)
Output Scale Levels 4096 levels x 4CH
Input Signal DMX512/1990
Output Signal Constant voltage PWM x 4CH
Decode Channel 4CH
DMX512 Socket Terminal block
Install Mounted DIN Rail for Large-Scale Project
Working Temperature -20 ~ 55°C
Controller Dimension L111×W46×H66(mm)
Weight 135g

Send Your Inquiry

FEL-CD267 DMX512 Decoder 4 Channel RGBW DIN Rail with RJ45 is a versatile and robust device engineered exclusively for constant voltage LED lamps, leveraging advanced microcomputer control technology to transform standard DMX512/1990 signals into PWM (pulse-width-modulation) outputs for precise RGBW lighting control. While its feature list mentions 5 channels, the technical parameters confirm four output channels, each capable of delivering a maximum load current of 6A, resulting in a total power output of 288W at 12V or 576W at 24V. This clarification underscores its powerful four-channel design, perfectly suited for vibrant RGBW applications. Its ability to automatically adapt to an input voltage range of DC12V-24V ensures compatibility with a wide array of power supplies, making it an ideal solution for both small-scale decorative projects and extensive lighting installations requiring reliable performance. With 4096 grey scale levels per channel and logarithmic dimming, it delivers soft, stable illumination without strobe flash, providing high-quality, flicker-free light suitable for various environments. Operation is streamlined with a 3-digit display showing the DMX address code, simplifying configuration and enhancing usability, while an indicator offers real-time feedback on DMX512 signal reception status. The FEL-CD267 supports dual-mode functionality: in master mode, it provides 8 built-in color-changing modes and 10 adjustable speed scales for standalone dynamic effects, enabling users to craft engaging lighting sequences without external control—a feature ideal for creative applications. In slave mode, it integrates seamlessly with digital consoles or analog silicon cases, driving RGBW LED lamps for architectural or general lighting purposes. Safety is a top priority, featuring wrong-wiring protection at the DMX port, overcurrent and short-circuit protection, and a power loss memory function that retains settings during outages, minimizing reconfiguration efforts—an invaluable asset in large-scale setups. The DIN rail design enhances its practicality, facilitating quick and secure installation in extensive projects such as commercial buildings or industrial spaces, where organized mounting is essential. The RJ45 DMX512 socket ensures modern, reliable connectivity aligned with contemporary networking standards, adding to its versatility. The FEL-CD267 excels in delivering smooth, vibrant RGBW lighting effects, with the flexibility to operate with 1 to 4 channels based on user needs. Its high-resolution dimming, protective design, DIN rail compatibility, and RJ45 interface make it an outstanding choice for lighting professionals and enthusiasts seeking dependable, scalable performance in structured environments. Whether illuminating indoor spaces, enhancing commercial displays, or powering large-scale architectural lighting, this decoder bridges traditional DMX systems with modern LED technology, offering a compact, rail-mountable solution that balances power, flexibility, and ease of use for sophisticated RGBW lighting control.

Superior Light Quality: Delivers 4096 grey scales per channel, ensuring smooth, vibrant RGBW effects without flicker for professional visuals.
Effortless Installation: DIN rail design simplifies secure mounting, making it ideal for quick setup in large commercial or industrial projects.

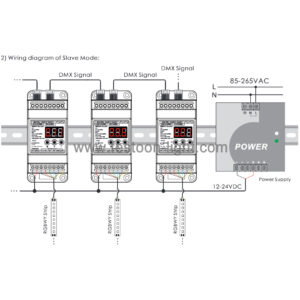

Versatile Control Modes: Offers master mode with 8 color-changing options or slave mode for seamless integration with DMX control systems.
Powerful RGBW Output: Provides 6A per channel across 4 channels, supporting up to 576W for robust lighting performance displays.
Enhanced Safety Features: Includes wrong-wiring, overcurrent, and short-circuit protection, ensuring reliable operation and long-term durability.
Modern Connectivity Option: RJ45 socket offers a contemporary, dependable DMX interface, aligning with current standards for easy integration.
Settings Preservation: Power loss memory retains configurations, reducing setup time after outages for consistent and efficient usability.

Q: What LEDs does the FEL-CD267 support?
A: It supports constant voltage RGBW LED lamps requiring PWM control, such as strips or modules.
Q: Why isn’t the DMX signal being detected?
A: Check the RJ45 connection, ensure DMX512 input is active, and verify the address on the 3-digit display.
Q: Why does the light flicker despite no strobe?
A: Ensure stable DC12V-24V input and that the load doesn’t exceed 6A per channel; check power supply stability.

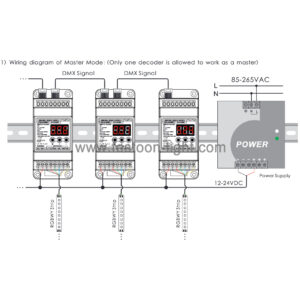

Q: How do I switch to master mode?
A: Disconnect from a DMX console or adjust settings to enable standalone master mode with built-in effects.

Retail Store Displays: Enhances shop interiors with vibrant RGBW lighting, installed via DIN rail for efficient, eye-catching setups.
Architectural Features: Illuminates building facades or interiors with smooth RGBW effects, mounted securely on DIN rails for durability.
Event Stage Lighting: Powers dynamic RGBW setups for performances, with RJ45 and rail mounting for reliable, quick deployment.
Industrial Environments: Supports structured RGBW lighting in warehouses or factories, leveraging DIN rail for organized installation efficiency.
Residential Ambiance: Provides consistent RGBW lighting for modern homes, simplified by DIN rail and RJ45 for easy integration.

Specifications
Model DMX512 Decoder 4 Channel RGBW DIN Rail with RJ45 FEL-CD267
Working Voltage DC12-24V
Max Load Current 6A x 4CH
Max Output Power 288W(12V)/576W(24V)
Output Scale Levels 4096 levels x 4CH
Input Signal DMX512/1990
Output Signal Constant voltage PWM x 4CH
Decode Channel 4CH
DMX512 Socket Terminal block
Install Mounted DIN Rail for Large-Scale Project
Working Temperature -20 ~ 55°C
Controller Dimension L111×W46×H66(mm)
Weight 135g

Send Your Inquiry

Description
FEL-CD267 DMX512 Decoder 4 Channel RGBW DIN Rail with RJ45 is a versatile and robust device engineered exclusively for constant voltage LED lamps, leveraging advanced microcomputer control technology to transform standard DMX512/1990 signals into PWM (pulse-width-modulation) outputs for precise RGBW lighting control. While its feature list mentions 5 channels, the technical parameters confirm four output channels, each capable of delivering a maximum load current of 6A, resulting in a total power output of 288W at 12V or 576W at 24V. This clarification underscores its powerful four-channel design, perfectly suited for vibrant RGBW applications. Its ability to automatically adapt to an input voltage range of DC12V-24V ensures compatibility with a wide array of power supplies, making it an ideal solution for both small-scale decorative projects and extensive lighting installations requiring reliable performance. With 4096 grey scale levels per channel and logarithmic dimming, it delivers soft, stable illumination without strobe flash, providing high-quality, flicker-free light suitable for various environments. Operation is streamlined with a 3-digit display showing the DMX address code, simplifying configuration and enhancing usability, while an indicator offers real-time feedback on DMX512 signal reception status. The FEL-CD267 supports dual-mode functionality: in master mode, it provides 8 built-in color-changing modes and 10 adjustable speed scales for standalone dynamic effects, enabling users to craft engaging lighting sequences without external control—a feature ideal for creative applications. In slave mode, it integrates seamlessly with digital consoles or analog silicon cases, driving RGBW LED lamps for architectural or general lighting purposes. Safety is a top priority, featuring wrong-wiring protection at the DMX port, overcurrent and short-circuit protection, and a power loss memory function that retains settings during outages, minimizing reconfiguration efforts—an invaluable asset in large-scale setups. The DIN rail design enhances its practicality, facilitating quick and secure installation in extensive projects such as commercial buildings or industrial spaces, where organized mounting is essential. The RJ45 DMX512 socket ensures modern, reliable connectivity aligned with contemporary networking standards, adding to its versatility. The FEL-CD267 excels in delivering smooth, vibrant RGBW lighting effects, with the flexibility to operate with 1 to 4 channels based on user needs. Its high-resolution dimming, protective design, DIN rail compatibility, and RJ45 interface make it an outstanding choice for lighting professionals and enthusiasts seeking dependable, scalable performance in structured environments. Whether illuminating indoor spaces, enhancing commercial displays, or powering large-scale architectural lighting, this decoder bridges traditional DMX systems with modern LED technology, offering a compact, rail-mountable solution that balances power, flexibility, and ease of use for sophisticated RGBW lighting control.
Why choose us?

Superior Light Quality: Delivers 4096 grey scales per channel, ensuring smooth, vibrant RGBW effects without flicker for professional visuals.
Effortless Installation: DIN rail design simplifies secure mounting, making it ideal for quick setup in large commercial or industrial projects.
Versatile Control Modes: Offers master mode with 8 color-changing options or slave mode for seamless integration with DMX control systems.
Powerful RGBW Output: Provides 6A per channel across 4 channels, supporting up to 576W for robust lighting performance displays.
Enhanced Safety Features: Includes wrong-wiring, overcurrent, and short-circuit protection, ensuring reliable operation and long-term durability.
Modern Connectivity Option: RJ45 socket offers a contemporary, dependable DMX interface, aligning with current standards for easy integration.
Settings Preservation: Power loss memory retains configurations, reducing setup time after outages for consistent and efficient usability.

Frequently Asked Questions

Q: What LEDs does the FEL-CD267 support?
A: It supports constant voltage RGBW LED lamps requiring PWM control, such as strips or modules.
Q: Why isn’t the DMX signal being detected?
A: Check the RJ45 connection, ensure DMX512 input is active, and verify the address on the 3-digit display.
Q: Why does the light flicker despite no strobe?
A: Ensure stable DC12V-24V input and that the load doesn’t exceed 6A per channel; check power supply stability.
Q: How do I switch to master mode?
A: Disconnect from a DMX console or adjust settings to enable standalone master mode with built-in effects.

Applications

Retail Store Displays: Enhances shop interiors with vibrant RGBW lighting, installed via DIN rail for efficient, eye-catching setups.
Architectural Features: Illuminates building facades or interiors with smooth RGBW effects, mounted securely on DIN rails for durability.
Event Stage Lighting: Powers dynamic RGBW setups for performances, with RJ45 and rail mounting for reliable, quick deployment.
Industrial Environments: Supports structured RGBW lighting in warehouses or factories, leveraging DIN rail for organized installation efficiency.
Residential Ambiance: Provides consistent RGBW lighting for modern homes, simplified by DIN rail and RJ45 for easy integration.
