DMX512 Controller Pixel with Remoter RJ45 XLR-3R
FEL-CD1 DMX512 Controller Pixel is a versatile lighting control device that outputs both international standard DMX512/1990 and SPI signals, compatible with various pixel lights. Featuring an OLED screen for easy operation and an RF wireless remote for mode, speed, and brightness adjustment, it includes a built-in real-time clock for scheduled playback. With 40 built-in effects, 4 DIY recording modes, and 4 combination modes, it creates dynamic lighting displays. It supports multiple interfaces (XLR-3, RJ45, terminal block) and operates at DC9V (adapter supports 110-240VAC), making it ideal for stage, architectural, and festive lighting applications.
Highlights
→ Multi-functional Control
→ Wireless Remote
→ Scheduled Playback
→ Multiple Interfaces
→ Support DMX&SPI
| Model | DMX512 Controller Pixel FEL-CD1 |
| Working Voltage | DC9V(With 110-240VAC Adapter,pls advise the PLUG) |
| Output Signal | DMX512, SPI |
| DMX Interface | XLR-3,RJ45, Terminal Block |
| Working Temperature | -20 ~ 55°C |
| Controller Dimension | 145mm x 78.4mm x 30.5mm |
| Weight | 410g |
Send Your Inquiry
1. Versatility: Supports both DMX512 and SPI signal outputs, compatible with various pixel lights to meet diverse lighting needs.
2. Ease of Use: Features an OLED screen and RF wireless remote control, offering an intuitive interface and easy operation, even for non-professionals.
3. Advanced Programming: Includes 40 preset effects, 4 DIY recording modes, and 4 combination modes, allowing users to create hundreds of unique lighting effects for personalized designs.
4. Automated Control: Built-in real-time clock system enables scheduled program playback, ideal for automated lighting control in holiday displays or architectural lighting.
5. Flexible Adjustments: Supports multi-level speed, brightness, and RGB sequence adjustments, enabling precise control for different scenarios.

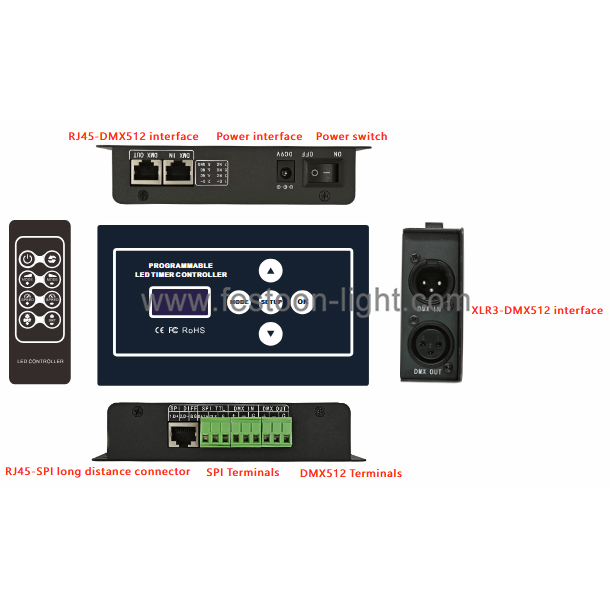

6. Wide Compatibility: Supports multiple interfaces (XLR-3, RJ45, terminal blocks), ensuring flexibility for various connection requirements.
7. Global Use: Operates at DC9V with an adapter supporting 110-240VAC input, suitable for worldwide applications.
Reliability: Efficient signal output and robust design ensure stable and durable performance, suitable for both indoor and outdoor environments.
Whether for small events or large-scale performances, the FEL-CD1 delivers exceptional performance and flexible control, making it the ideal choice for lighting designers and engineers. a
Q: What types of lights does the FEL-CD1 controller support?
A: The FEL-CD1 supports DMX512 and SPI signal outputs, making it compatible with various pixel lights, LED modules, and LED strips.
Q: Does the controller support wireless control?
A: Yes, the FEL-CD1 features an RF wireless remote control, allowing users to switch modes, adjust speed, and control brightness remotely.
Q: How do I set up the scheduled playback function?
A: Using the built-in real-time clock system, users can set up scheduled program playback on the controller for automated lighting control.
Q: Can I create custom lighting effects?
A: Yes, the FEL-CD1 offers 4 DIY recording modes and 4 combination modes, enabling users to create and save custom lighting effects.
Q: What types of interfaces does the FEL-CD1 support?
A: The controller supports multiple interfaces, including XLR-3, RJ45, and terminal blocks, ensuring compatibility with various devices.
Q: What is the operating voltage of the FEL-CD1?
A: The FEL-CD1 operates at DC9V and comes with an adapter supporting 110-240VAC input, making it suitable for global use.
Stage Lighting: Ideal for concerts, theaters, and music festivals, enabling dynamic lighting effects and precise control for performances.
Architectural Lighting: Suitable for landscape lighting on building facades, bridges, and landmarks, creating stunning light shows and nighttime visual effects.
Festive Decorations: Perfect for holiday lighting setups such as Christmas, Spring Festival, and Halloween, creating a warm or spectacular festive atmosphere.
Commercial Displays: Used in shopping malls, store windows, and exhibition halls to attract customers and enhance brand image through creative lighting designs.
Weddings and Events: Ideal for lighting setups at weddings, parties, and celebrations, creating a romantic or lively ambiance.
Theme Parks: Suitable for lighting designs on amusement rides and themed scenes, enhancing visitors’ immersive experiences.
Home Entertainment: Used in home theaters and smart home setups to provide personalized lighting effects.
With its versatility, reliability, and user-friendly design, the FEL-CD1 is an ideal choice for a wide range of lighting applications.
Compatibility:
Ensure your lighting equipment (e.g., LED strips, pixel lights) supports DMX512 or SPI protocols to perfectly match the FEL-CD1.Check the interface types (XLR-3, RJ45, or terminal blocks) to ensure proper connection with the controller.
Installation Environment:
For outdoor use, ensure the controller and cables are waterproof and dustproof, or take protective measures in extreme weather conditions.Ensure the installation location is well-ventilated to prevent overheating.
Power Requirements:
Confirm that your power supply meets the DC9V operating voltage requirement and that the adapter supports 110-240VAC input.If connecting a large number of lighting devices, calculate the total power demand to avoid overloading.
Learning Curve:
Although the FEL-CD1 is user-friendly, it is recommended to familiarize yourself with the DMX512 protocol and controller functions to fully utilize its capabilities.Read the user manual to understand how to set up scheduled playback, DIY effects, and combination modes.
Scalability:
If you plan to expand your lighting system in the future, ensure the controller supports multi-channel output and has sufficient interfaces and signal expansion capabilities.
After-Sales Service:
Confirm whether the brand provides reliable technical support and warranty services to resolve any issues promptly.
Budget and Cost-Effectiveness:
Evaluate whether the controller’s features meet your project requirements and compare it with similar products to ensure the best value for money.
Safety:
Ensure all electrical connections comply with safety standards to avoid short circuits or leakage risks.
Regularly inspect the equipment’s operating condition and maintain or replace aging components as needed.
| Model | DMX512 Controller Pixel FEL-CD1 |
| Working Voltage | DC9V(With 110-240VAC Adapter,pls advise the PLUG) |
| Output Signal | DMX512, SPI |
| DMX Interface | XLR-3,RJ45, Terminal Block |
| Working Temperature | -20 ~ 55°C |
| Controller Dimension | 145mm x 78.4mm x 30.5mm |
| Weight | 410g |
Send Your Inquiry
1. Versatility: Supports both DMX512 and SPI signal outputs, compatible with various pixel lights to meet diverse lighting needs.
2. Ease of Use: Features an OLED screen and RF wireless remote control, offering an intuitive interface and easy operation, even for non-professionals.
3. Advanced Programming: Includes 40 preset effects, 4 DIY recording modes, and 4 combination modes, allowing users to create hundreds of unique lighting effects for personalized designs.
4. Automated Control: Built-in real-time clock system enables scheduled program playback, ideal for automated lighting control in holiday displays or architectural lighting.
5. Flexible Adjustments: Supports multi-level speed, brightness, and RGB sequence adjustments, enabling precise control for different scenarios.
6. Wide Compatibility: Supports multiple interfaces (XLR-3, RJ45, terminal blocks), ensuring flexibility for various connection requirements.
7. Global Use: Operates at DC9V with an adapter supporting 110-240VAC input, suitable for worldwide applications.
Reliability: Efficient signal output and robust design ensure stable and durable performance, suitable for both indoor and outdoor environments.
Whether for small events or large-scale performances, the FEL-CD1 delivers exceptional performance and flexible control, making it the ideal choice for lighting designers and engineers. a
Q: What types of lights does the FEL-CD1 controller support?
A: The FEL-CD1 supports DMX512 and SPI signal outputs, making it compatible with various pixel lights, LED modules, and LED strips.
Q: Does the controller support wireless control?
A: Yes, the FEL-CD1 features an RF wireless remote control, allowing users to switch modes, adjust speed, and control brightness remotely.
Q: How do I set up the scheduled playback function?
A: Using the built-in real-time clock system, users can set up scheduled program playback on the controller for automated lighting control.
Q: Can I create custom lighting effects?
A: Yes, the FEL-CD1 offers 4 DIY recording modes and 4 combination modes, enabling users to create and save custom lighting effects.
Q: What types of interfaces does the FEL-CD1 support?
A: The controller supports multiple interfaces, including XLR-3, RJ45, and terminal blocks, ensuring compatibility with various devices.
Q: What is the operating voltage of the FEL-CD1?
A: The FEL-CD1 operates at DC9V and comes with an adapter supporting 110-240VAC input, making it suitable for global use.
Stage Lighting: Ideal for concerts, theaters, and music festivals, enabling dynamic lighting effects and precise control for performances.
Architectural Lighting: Suitable for landscape lighting on building facades, bridges, and landmarks, creating stunning light shows and nighttime visual effects.
Festive Decorations: Perfect for holiday lighting setups such as Christmas, Spring Festival, and Halloween, creating a warm or spectacular festive atmosphere.
Commercial Displays: Used in shopping malls, store windows, and exhibition halls to attract customers and enhance brand image through creative lighting designs.
Weddings and Events: Ideal for lighting setups at weddings, parties, and celebrations, creating a romantic or lively ambiance.
Theme Parks: Suitable for lighting designs on amusement rides and themed scenes, enhancing visitors’ immersive experiences.
Home Entertainment: Used in home theaters and smart home setups to provide personalized lighting effects.
With its versatility, reliability, and user-friendly design, the FEL-CD1 is an ideal choice for a wide range of lighting applications.
Compatibility:
Ensure your lighting equipment (e.g., LED strips, pixel lights) supports DMX512 or SPI protocols to perfectly match the FEL-CD1.Check the interface types (XLR-3, RJ45, or terminal blocks) to ensure proper connection with the controller.
Installation Environment:
For outdoor use, ensure the controller and cables are waterproof and dustproof, or take protective measures in extreme weather conditions.Ensure the installation location is well-ventilated to prevent overheating.
Power Requirements:
Confirm that your power supply meets the DC9V operating voltage requirement and that the adapter supports 110-240VAC input.If connecting a large number of lighting devices, calculate the total power demand to avoid overloading.
Learning Curve:
Although the FEL-CD1 is user-friendly, it is recommended to familiarize yourself with the DMX512 protocol and controller functions to fully utilize its capabilities.Read the user manual to understand how to set up scheduled playback, DIY effects, and combination modes.
Scalability:
If you plan to expand your lighting system in the future, ensure the controller supports multi-channel output and has sufficient interfaces and signal expansion capabilities.
After-Sales Service:
Confirm whether the brand provides reliable technical support and warranty services to resolve any issues promptly.
Budget and Cost-Effectiveness:
Evaluate whether the controller’s features meet your project requirements and compare it with similar products to ensure the best value for money.
Safety:
Ensure all electrical connections comply with safety standards to avoid short circuits or leakage risks.
Regularly inspect the equipment’s operating condition and maintain or replace aging components as needed.
