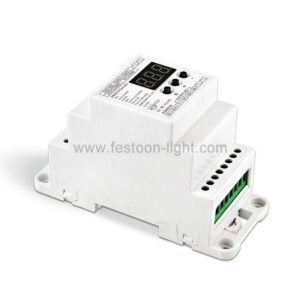

DMX Decoder 3 Channel RGB DIN Rail with RJ45

FEL-CD266 DMX Decoder 3 Channel RGB DIN Rail with RJ45 is a robust and efficient device tailored for constant voltage LED lamps, utilizing advanced microcomputer control technology to transform standard DMX512/1990 signals into PWM (pulse-width-modulation) outputs for precise RGB lighting control. Although its feature list mentions 5 channels, the technical parameters confirm three output channels, each capable of delivering a maximum load current of 8A, resulting in a total power output of 288W at 12V or 576W at 24V. This clarification highlights its powerful three-channel design, perfectly suited for vibrant RGB applications. Its ability to automatically adapt to an input voltage range of DC12V-24V ensures compatibility with a variety of power supplies, making it an adaptable solution for both small-scale decorative projects and larger structured installations. With 4096 grey scale levels per channel and logarithmic dimming, it delivers soft, stable illumination without strobe flash, ideal for environments requiring high-quality, flicker-free light. Operation is streamlined with a 3-digit display showing the DMX address code, simplifying configuration, while an indicator provides real-time feedback on DMX512 signal reception status. The FEL-CD266 supports dual-mode functionality: in master mode, it includes 8 built-in color-changing modes and 10 adjustable speed scales for standalone dynamic effects, enabling users to create engaging lighting sequences without external control. In slave mode, it integrates seamlessly with digital consoles or analog silicon cases, driving RGB LED lamps for architectural or general lighting purposes. Safety is a priority, with wrong-wiring protection at the DMX port, overcurrent and short-circuit protection, and a power loss memory function that retains settings during outages, reducing reconfiguration efforts—a valuable feature in extensive setups. The DIN rail design facilitates quick and secure installation in large-scale projects like commercial or industrial lighting systems, while the RJ45 DMX512 socket offers modern, reliable connectivity aligned with contemporary networking standards. The FEL-CD266 is optimized for RGB lighting applications, blending high-resolution control with practical installation features. Its three-channel configuration at 8A each, protective design, DIN rail compatibility, and RJ45 interface make it an excellent choice for lighting professionals and enthusiasts seeking dependable performance in organized environments. Whether enhancing indoor aesthetics, illuminating commercial displays, or powering structured architectural lighting, this decoder bridges traditional DMX systems with modern LED technology, offering a compact, rail-mountable solution that balances power, flexibility, and ease of use for sophisticated RGB lighting control.
