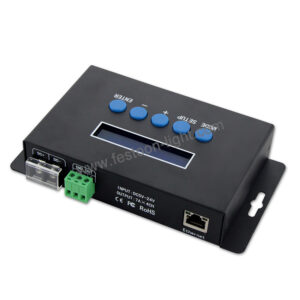

ArtNet Ethernet to SPI Controller DMX 512 Converter
FEL-CA1 is a professional ArtNet to SPI Controller that supports ArtNet (V1) and ArtNet + sACN (V2) protocols. It converts Ethernet signals into SPI pixel signals, ideal for high-density pixel projects like matrix panels and architectural lighting. Additionally, it outputs DMX512 signals for seamless LED integration. Supporting various LED driver ICs, it controls up to 2720 pixels. Featuring an LCD display, built-in Web Server, and online firmware upgrades, it ensures easy operation and outstanding performance.
Highlights
→ Multi-protocol Support
→ High Pixel Control
→ Easy Web Interface
→ Online Firmware Upgrade
→ DIP Plug-in Design
| Model | Ethernet to SPI Converter and DMX Controller FEL-CA1 |
| Working Voltage | DC5-24V |
| Output Current | 7A X 4CH(Built-in 7.5A fuse) |
| Input Ethernet Control Protocol | V1: ArtNet V2: ArtNet, sACN(E1.31) |
| Output Control IC | 2811/8904/6812/2904/1814/1914/5603/9812/APA102/2812/9813 /3001/8806/6803/2801. For more please check with our sales. |
| Control Pixels | RGB：340 Pixels X16CH RGBW：256 Pixels X16CH |
| Input Ethernet Control Protocol | ArtNet |
| Output DMX512 | One port(2X512 Channels) |
| Working Temperature | -20 ~ 55°C |
| Controller Dimension | L166×W111.5×H31(mm) |
| Weight | 510g |
Send Your Inquiry
1. Powerful Protocol Support for Versatile Applications
FEL-CA1 supports ArtNet (V1 version) and ArtNet + sACN (E1.31) (V2 version), making it compatible with various Ethernet DMX control systems for diverse lighting projects.

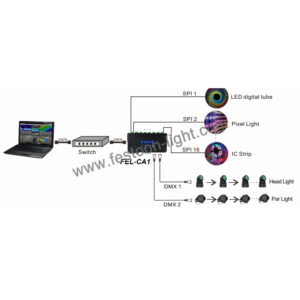

2. Multi-Output Functionality with High Compatibility
The device outputs both SPI (TTL) signals, supporting multiple LED driver ICs, and DMX512 signals simultaneously. This allows seamless integration of different LED types without the need for additional conversion devices.
3. Exceptional Pixel Control Capability
Supports up to 2720 RGB pixels (RGB: 340 pixels x 16 channels, RGBW: 256 pixels x 16 channels), making it ideal for large-scale lighting projects such as architectural lighting, stage effects, and LED displays.

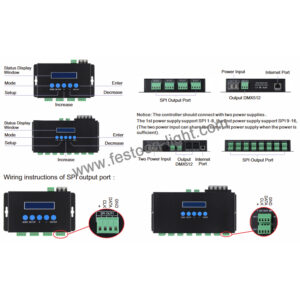

4. User-Friendly Interface for Easy Configuration
Equipped with an LCD display and built-in Web Server, FEL-CA1 offers an intuitive interface for effortless parameter adjustments without complex software setups, enhancing user convenience.
5. Online Firmware Upgrades for Continuous Optimization
Supports online firmware updates, ensuring users always have access to the latest features, improving stability, and extending the product’s lifespan.
6. Reliable Hardware Design for Easy Maintenance
The DIP plug-in design allows for quick replacement of worn-out components, reducing downtime and maintenance costs caused by wiring errors or short circuits.
7. Clear Status Indicators for Efficient Debugging
Built-in test mode with network interface indicator lights enables users to monitor the device’s working status at a glance, facilitating quick diagnostics and adjustments for efficient project implementation.
8. Wide Voltage Input for Flexible Applications
With DC5V-DC24V input voltage support, FEL-CA1 is compatible with various LED lighting setups and power environments, ensuring stable performance across different projects.
Q: Will the FEL-CA1 encounter compatibility issues when connecting to different types of LED lights?
A: The FEL-CA1 supports multiple LED driving ICs (such as 2811, APA102, WS2812, etc.), making it compatible with most LED lights. However, users should ensure that the selected LED driving IC matches the output specifications of the device.
Q: How do I upgrade the firmware on the FEL-CA1?
A: The FEL-CA1 supports online firmware upgrades. Users can perform the upgrade through the built-in web server interface, following the prompts to complete the process.
Q: How can I repair the device if there is a short circuit or power issue?
A: The FEL-CA1 features a DIP plug-in design, allowing users to replace damaged parts themselves, preventing further damage from short circuits or incorrect wiring.
Q: Does the device support multiple control protocols working simultaneously?
A: Yes, the FEL-CA1 supports ArtNet and sACN(E1.31) protocols in the V2 version, and outputs DMX512 signals, meeting a variety of control needs.
Q: How can I check the working status of the device?
A: The device includes a built-in test mode and network interface indicator lights, which clearly show the operational status of the device, helping users quickly determine its performance.
FEL-CA1 is mainly used in projects requiring high-density pixel control, such as:
1. Architectural Facade Lighting: Controls contour and decorative lights on building exteriors, creating dynamic and colorful lighting effects.
2. Stage Lighting Control: Manages large-scale LED pixel arrays for stage performances, providing light effects and animations.
3. Billboards and LED Displays: Used for controlling LED advertising screens and dynamic display panels, delivering precise pixel signals.
4. Large-Scale LED Decoration Projects: Ideal for high-density lighting setups in events like festivals, exhibitions, or installations.
5. LED Matrix Panels: Provides efficient pixel control in large LED matrix panels, widely used in art installations and public art projects.
1. Concerns about System Integration and Compatibility
Q: If I have multiple devices from different brands or models, how can I ensure the FEL-CA1 is compatible and integrates seamlessly with them?
A: The FEL-CA1 supports protocols like ArtNet and sACN, making it highly compatible with most devices. If there are specific compatibility issues, users can contact the manufacturer or technical support for firmware updates or configuration guides to ensure smooth system integration.
2. Remote Control and Monitoring
Q: If my project is deployed in a remote area, can I remotely monitor and control the device?
A: The FEL-CA1 supports a web interface for setup and configuration, allowing remote access over a local network. For remote access from anywhere, users can set up a VPN or other secure remote network solutions to access the device safely.
3. Device Recovery Mechanism in Case of Failure
Q: What happens if the device fails? Does it have a recovery mechanism or backup plan to avoid system downtime?
A: The FEL-CA1 supports online firmware updates and has self-diagnosis capabilities to help identify issues. The DIP plug-in design allows users to easily replace damaged components. Users can also back up configuration files and quickly restore the device to normal operation if needed.
4. Integration with Other Smart Systems
Q: If my project requires integration with smart home systems or automation controls, is the FEL-CA1 compatible?
A: The FEL-CA1 works via Ethernet protocols and can easily integrate with any smart home system supporting ArtNet or sACN protocols. If the system uses other protocols, additional conversion devices or middleware can be used to bridge the communication.
5. Managing Multiple Devices and Automation
Q: If I need to manage several FEL-CA1 units, how can I efficiently configure and control them in bulk?
A: The FEL-CA1 allows configuration through the web interface, so users can batch-set parameters and IP addresses for multiple devices. For large-scale projects, a dedicated software platform or control system can be used for centralized management, scheduling, and automation.
6. Product Updates and Future-Proofing
Q: Will the device become obsolete due to firmware or protocol updates? If new control protocols come out in the future, will my device support them?
A: The FEL-CA1 supports online firmware upgrades, and the manufacturer regularly releases updates to support new features or protocols. The V2 version is firmware-upgradable, so users can stay updated with new capabilities as long as they monitor firmware release announcements.
7. International Use and Voltage Compatibility
Q: If I plan to use this device in different countries, how do I handle voltage and plug compatibility?
A: The FEL-CA1 supports a wide input voltage range (DC 5-24V), making it suitable for various power sources. Users just need to ensure the power adapter matches the local voltage standards and plug types for international use, as the device itself is not affected by voltage mismatches.
8. Environmental Suitability (Outdoor Use)
Q: If I need to use this device outdoors, can it withstand weather conditions? What about water and dust resistance?
A: The FEL-CA1 is not specifically rated for waterproof or dustproof conditions. However, it can be housed in an outdoor-rated protective enclosure to safeguard it from environmental elements such as rain or dust. Using a weatherproof case will help extend the device’s lifespan when used outdoors.
| Model | Ethernet to SPI Converter and DMX Controller FEL-CA1 |
| Working Voltage | DC5-24V |
| Output Current | 7A X 4CH(Built-in 7.5A fuse) |
| Input Ethernet Control Protocol | V1: ArtNet V2: ArtNet, sACN(E1.31) |
| Output Control IC | 2811/8904/6812/2904/1814/1914/5603/9812/APA102/2812/9813 /3001/8806/6803/2801. For more please check with our sales. |
| Control Pixels | RGB：340 Pixels X16CH RGBW：256 Pixels X16CH |
| Input Ethernet Control Protocol | ArtNet |
| Output DMX512 | One port(2X512 Channels) |
| Working Temperature | -20 ~ 55°C |
| Controller Dimension | L166×W111.5×H31(mm) |
| Weight | 510g |
Send Your Inquiry
1. Powerful Protocol Support for Versatile Applications
FEL-CA1 supports ArtNet (V1 version) and ArtNet + sACN (E1.31) (V2 version), making it compatible with various Ethernet DMX control systems for diverse lighting projects.
2. Multi-Output Functionality with High Compatibility
The device outputs both SPI (TTL) signals, supporting multiple LED driver ICs, and DMX512 signals simultaneously. This allows seamless integration of different LED types without the need for additional conversion devices.
3. Exceptional Pixel Control Capability
Supports up to 2720 RGB pixels (RGB: 340 pixels x 16 channels, RGBW: 256 pixels x 16 channels), making it ideal for large-scale lighting projects such as architectural lighting, stage effects, and LED displays.
4. User-Friendly Interface for Easy Configuration
Equipped with an LCD display and built-in Web Server, FEL-CA1 offers an intuitive interface for effortless parameter adjustments without complex software setups, enhancing user convenience.
5. Online Firmware Upgrades for Continuous Optimization
Supports online firmware updates, ensuring users always have access to the latest features, improving stability, and extending the product’s lifespan.
6. Reliable Hardware Design for Easy Maintenance
The DIP plug-in design allows for quick replacement of worn-out components, reducing downtime and maintenance costs caused by wiring errors or short circuits.
7. Clear Status Indicators for Efficient Debugging
Built-in test mode with network interface indicator lights enables users to monitor the device’s working status at a glance, facilitating quick diagnostics and adjustments for efficient project implementation.
8. Wide Voltage Input for Flexible Applications
With DC5V-DC24V input voltage support, FEL-CA1 is compatible with various LED lighting setups and power environments, ensuring stable performance across different projects.
Q: Will the FEL-CA1 encounter compatibility issues when connecting to different types of LED lights?
A: The FEL-CA1 supports multiple LED driving ICs (such as 2811, APA102, WS2812, etc.), making it compatible with most LED lights. However, users should ensure that the selected LED driving IC matches the output specifications of the device.
Q: How do I upgrade the firmware on the FEL-CA1?
A: The FEL-CA1 supports online firmware upgrades. Users can perform the upgrade through the built-in web server interface, following the prompts to complete the process.
Q: How can I repair the device if there is a short circuit or power issue?
A: The FEL-CA1 features a DIP plug-in design, allowing users to replace damaged parts themselves, preventing further damage from short circuits or incorrect wiring.
Q: Does the device support multiple control protocols working simultaneously?
A: Yes, the FEL-CA1 supports ArtNet and sACN(E1.31) protocols in the V2 version, and outputs DMX512 signals, meeting a variety of control needs.
Q: How can I check the working status of the device?
A: The device includes a built-in test mode and network interface indicator lights, which clearly show the operational status of the device, helping users quickly determine its performance.
FEL-CA1 is mainly used in projects requiring high-density pixel control, such as:
1. Architectural Facade Lighting: Controls contour and decorative lights on building exteriors, creating dynamic and colorful lighting effects.
2. Stage Lighting Control: Manages large-scale LED pixel arrays for stage performances, providing light effects and animations.
3. Billboards and LED Displays: Used for controlling LED advertising screens and dynamic display panels, delivering precise pixel signals.
4. Large-Scale LED Decoration Projects: Ideal for high-density lighting setups in events like festivals, exhibitions, or installations.
5. LED Matrix Panels: Provides efficient pixel control in large LED matrix panels, widely used in art installations and public art projects.
1. Concerns about System Integration and Compatibility
Q: If I have multiple devices from different brands or models, how can I ensure the FEL-CA1 is compatible and integrates seamlessly with them?
A: The FEL-CA1 supports protocols like ArtNet and sACN, making it highly compatible with most devices. If there are specific compatibility issues, users can contact the manufacturer or technical support for firmware updates or configuration guides to ensure smooth system integration.
2. Remote Control and Monitoring
Q: If my project is deployed in a remote area, can I remotely monitor and control the device?
A: The FEL-CA1 supports a web interface for setup and configuration, allowing remote access over a local network. For remote access from anywhere, users can set up a VPN or other secure remote network solutions to access the device safely.
3. Device Recovery Mechanism in Case of Failure
Q: What happens if the device fails? Does it have a recovery mechanism or backup plan to avoid system downtime?
A: The FEL-CA1 supports online firmware updates and has self-diagnosis capabilities to help identify issues. The DIP plug-in design allows users to easily replace damaged components. Users can also back up configuration files and quickly restore the device to normal operation if needed.
4. Integration with Other Smart Systems
Q: If my project requires integration with smart home systems or automation controls, is the FEL-CA1 compatible?
A: The FEL-CA1 works via Ethernet protocols and can easily integrate with any smart home system supporting ArtNet or sACN protocols. If the system uses other protocols, additional conversion devices or middleware can be used to bridge the communication.
5. Managing Multiple Devices and Automation
Q: If I need to manage several FEL-CA1 units, how can I efficiently configure and control them in bulk?
A: The FEL-CA1 allows configuration through the web interface, so users can batch-set parameters and IP addresses for multiple devices. For large-scale projects, a dedicated software platform or control system can be used for centralized management, scheduling, and automation.
6. Product Updates and Future-Proofing
Q: Will the device become obsolete due to firmware or protocol updates? If new control protocols come out in the future, will my device support them?
A: The FEL-CA1 supports online firmware upgrades, and the manufacturer regularly releases updates to support new features or protocols. The V2 version is firmware-upgradable, so users can stay updated with new capabilities as long as they monitor firmware release announcements.
7. International Use and Voltage Compatibility
Q: If I plan to use this device in different countries, how do I handle voltage and plug compatibility?
A: The FEL-CA1 supports a wide input voltage range (DC 5-24V), making it suitable for various power sources. Users just need to ensure the power adapter matches the local voltage standards and plug types for international use, as the device itself is not affected by voltage mismatches.
8. Environmental Suitability (Outdoor Use)
Q: If I need to use this device outdoors, can it withstand weather conditions? What about water and dust resistance?
A: The FEL-CA1 is not specifically rated for waterproof or dustproof conditions. However, it can be housed in an outdoor-rated protective enclosure to safeguard it from environmental elements such as rain or dust. Using a weatherproof case will help extend the device’s lifespan when used outdoors.
