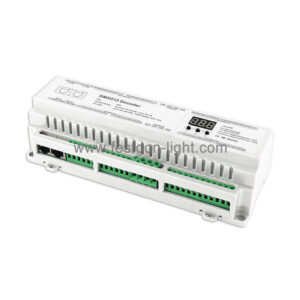

512 DMX Decoder 40 Channel CV DIN Rail
FEL-CD271 512 DMX Decoder 40 Channel CV DIN Rail converts DMX512/1990 signals to PWM using advanced microcomputer technology, designed for constant voltage LED lamps. It auto-adapts to DC12V-24V input, driving 40 channels at 3A each with power up to 1440W (12V) or 2880W (24V). Featuring a 3-digit DMX address display, it supports 8-bit/16-bit decoding, 6 color-changing modes, and 10 speed scales. Includes signal status indicator, wrong-wiring protection, power loss memory, and overcurrent/short-circuit protection. The DIN rail/screw dual-installation design simplifies large-scale setups for single-color, color temperature, RGB, RGBW, or RGBWY lighting.
Highlights
→ 3A per channel, 40 outputs
→ Auto-adjusts DC12-24V
→ 6 modes, 10 speeds
→ DIN Rail Easy large-scale installation
→ Wiring protection, memory
| Model | 512 DMX Decoder 40 Channel CV DIN Rail FEL-CD271 |
| Working Voltage | DC12-24V |
| Max Load Current | 3A×40CH |
| Max Output Power | 1440W (12V) / 2880W(24V) |
| Output Scale Levels | 4096 levels |
| Input Signal | DMX512/1990 |
| Output Signal | Constant voltage PWM |
| Decode Channel | 40 Channel |
| DMX512 Socket | RJ45, Terminal Block |
| Install Mounted | DIN Rail for Large-Scale Project |
| Working Temperature | -20 ~ 55°C |
| Controller Dimension | L218×W90×H58.5(mm) |
| Weight | 331g |
Send Your Inquiry
Unmatched Channel Capacity: Controls 40 channels, perfect for large-scale projects needing extensive, precise lighting management effortlessly.
Efficient Installation: DIN rail and screw options simplify secure mounting, ideal for quick deployment in expansive commercial or industrial setups.
Superior Dimming Precision: Supports 8-bit or 16-bit decoding, delivering smooth, high-resolution effects for professional-quality lighting outcomes.
Exceptional Power Output: Provides up to 2880W at 24V, powering vast single-color, RGBW, or RGBWY setups with ease and reliability.
Robust Safety Mechanisms: Features wrong-wiring, overcurrent, and short-circuit protection, ensuring durability and safe operation over time.
Flexible Voltage Range: Auto-adapts to DC12-24V, allowing seamless integration with various power supplies for versatile lighting applications.
Settings Preservation: Power loss memory retains configurations, minimizing setup time after outages for consistent, efficient performance.
Q: What types of LEDs does the FEL-CD271 support?
A: It supports constant voltage single-color, color temperature, RGB, RGBW, and RGBWY LED lamps requiring PWM control.
Q: Why isn’t the DMX signal being detected?
A: Check RJ45 or terminal block connections, ensure DMX512 input is active, and verify the address on the 3-digit display.
Q: Why does the light flicker unexpectedly?
A: Ensure stable DC12-24V input and that the load doesn’t exceed 3A per channel; check power supply stability or wiring issues.
Q: How do I switch between color modes?
A: Use a DMX console to select from 6 modes and adjust speeds, or configure settings if in a standalone mode.
Q: Can it control more than 40 channels?
A: No, it’s limited to 40 channels; additional units are required for more capacity with proper power distribution.
Q: Why doesn’t it retain settings after a power outage?
A: It has power loss memory—check if enabled or if there’s a firmware issue; contact support if it persists.
Q: How do I mount it on a DIN rail?
A: Clip it onto a standard DIN rail or use screws for the dual-mount option; ensure a firm connection for stability.
Q: Why is the power output lower than expected?
A: Verify input voltage and load don’t exceed 3A per channel or 1440W/2880W total; ensure correct wiring and power supply.
Q: Is it compatible with all DMX controllers?
A: Yes, it accepts standard DMX512/1990 signals, but ensure controller output matches the decoder’s address and protocol settings.
Q: Why does the indicator show no signal despite connection?
A: Confirm the DMX cable is functional, the controller is sending a signal, and the address aligns with the console’s output.
Commercial Complexes: Powers extensive lighting in malls or offices, installed via DIN rail for vibrant, organized displays.
Architectural Highlights: Illuminates building facades or interiors with precise RGBW effects, mounted securely on DIN rails.
Event Stage Lighting: Drives dynamic 40-channel setups for concerts or shows, with easy rail installation for quick deployment.
Industrial Warehouses: Supports large-scale LED lighting in factories or storage, leveraging DIN rail for efficient, robust control.
Theater Productions: Enhances stage lighting with scalable, smooth RGBWY effects, simplified by rail mounting and high capacity.
| Model | 512 DMX Decoder 40 Channel CV DIN Rail FEL-CD271 |
| Working Voltage | DC12-24V |
| Max Load Current | 3A×40CH |
| Max Output Power | 1440W (12V) / 2880W(24V) |
| Output Scale Levels | 4096 levels |
| Input Signal | DMX512/1990 |
| Output Signal | Constant voltage PWM |
| Decode Channel | 40 Channel |
| DMX512 Socket | RJ45, Terminal Block |
| Install Mounted | DIN Rail for Large-Scale Project |
| Working Temperature | -20 ~ 55°C |
| Controller Dimension | L218×W90×H58.5(mm) |
| Weight | 331g |
Send Your Inquiry
Unmatched Channel Capacity: Controls 40 channels, perfect for large-scale projects needing extensive, precise lighting management effortlessly.
Efficient Installation: DIN rail and screw options simplify secure mounting, ideal for quick deployment in expansive commercial or industrial setups.
Superior Dimming Precision: Supports 8-bit or 16-bit decoding, delivering smooth, high-resolution effects for professional-quality lighting outcomes.
Exceptional Power Output: Provides up to 2880W at 24V, powering vast single-color, RGBW, or RGBWY setups with ease and reliability.
Robust Safety Mechanisms: Features wrong-wiring, overcurrent, and short-circuit protection, ensuring durability and safe operation over time.
Flexible Voltage Range: Auto-adapts to DC12-24V, allowing seamless integration with various power supplies for versatile lighting applications.
Settings Preservation: Power loss memory retains configurations, minimizing setup time after outages for consistent, efficient performance.
Q: What types of LEDs does the FEL-CD271 support?
A: It supports constant voltage single-color, color temperature, RGB, RGBW, and RGBWY LED lamps requiring PWM control.
Q: Why isn’t the DMX signal being detected?
A: Check RJ45 or terminal block connections, ensure DMX512 input is active, and verify the address on the 3-digit display.
Q: Why does the light flicker unexpectedly?
A: Ensure stable DC12-24V input and that the load doesn’t exceed 3A per channel; check power supply stability or wiring issues.
Q: How do I switch between color modes?
A: Use a DMX console to select from 6 modes and adjust speeds, or configure settings if in a standalone mode.
Q: Can it control more than 40 channels?
A: No, it’s limited to 40 channels; additional units are required for more capacity with proper power distribution.
Q: Why doesn’t it retain settings after a power outage?
A: It has power loss memory—check if enabled or if there’s a firmware issue; contact support if it persists.
Q: How do I mount it on a DIN rail?
A: Clip it onto a standard DIN rail or use screws for the dual-mount option; ensure a firm connection for stability.
Q: Why is the power output lower than expected?
A: Verify input voltage and load don’t exceed 3A per channel or 1440W/2880W total; ensure correct wiring and power supply.
Q: Is it compatible with all DMX controllers?
A: Yes, it accepts standard DMX512/1990 signals, but ensure controller output matches the decoder’s address and protocol settings.
Q: Why does the indicator show no signal despite connection?
A: Confirm the DMX cable is functional, the controller is sending a signal, and the address aligns with the console’s output.
Commercial Complexes: Powers extensive lighting in malls or offices, installed via DIN rail for vibrant, organized displays.
Architectural Highlights: Illuminates building facades or interiors with precise RGBW effects, mounted securely on DIN rails.
Event Stage Lighting: Drives dynamic 40-channel setups for concerts or shows, with easy rail installation for quick deployment.
Industrial Warehouses: Supports large-scale LED lighting in factories or storage, leveraging DIN rail for efficient, robust control.
Theater Productions: Enhances stage lighting with scalable, smooth RGBWY effects, simplified by rail mounting and high capacity.
