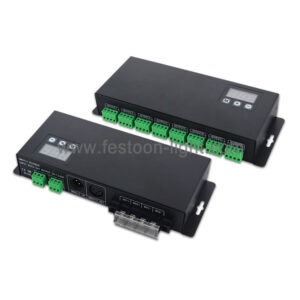

24CH DMX512 Decoder Constant Voltage

FEL-CD203 24CH DMX512 Decoder Constant Voltage is a sophisticated device designed to bridge the gap between universal DMX512/1990 digital signals and constant voltage LED lighting systems, converting these signals into PWM (pulse-width-modulation) outputs with exceptional precision. Controlled through a DMX512 console, it boasts 24 output channels, each capable of delivering up to 3A of current, resulting in a maximum output power of 360W at 5V, 860W at 12V, or an impressive 1720W at 24V. This power capacity, paired with a flexible working voltage range of DC5V-24V, makes it adaptable to a wide array of LED setups, from small decorative arrays to large-scale installations requiring robust performance. What sets the FEL-CD203 apart is its ability to provide 4096 grey steps per channel, enabling exquisitely smooth color fades and rich, vivid lighting effects that elevate the visual impact of LED displays. A 3-digit display simplifies operation by clearly showing the DMX address code, allowing users to configure the device with ease and precision. The decoder also includes multiple self-changing modes and 10 adjustable speed levels, offering creative flexibility without the need for extensive external programming. This feature empowers users to craft dynamic lighting sequences—such as gradual transitions or pulsating effects—directly through the device, enhancing the versatility of LED color expression. Connectivity is facilitated by two DMX512 socket options, XLR-3R and terminal block, ensuring reliable signal input from a DMX console or controller, making it compatible with standard lighting control systems. The FEL-CD203 employs unique programming technology to ensure that color transitions are not only smooth but also visually striking, enriching the ambiance of any environment it illuminates. Whether used in professional lighting design or creative DIY projects, the FEL-CD203 delivers consistent and high-quality performance. Its high channel count, substantial power output, and fine-tuned grey scale control make it an ideal choice for applications demanding precision and scalability. From accentuating architectural features to powering vibrant stage effects, this decoder provides the tools to create exclamatory lighting experiences, blending technical excellence with artistic potential in a compact, efficient package tailored for constant voltage LED systems.
